Top chain accessories Major Specifications
Corner Disk for TPUH-BO Chain :TP-C12777T-CD

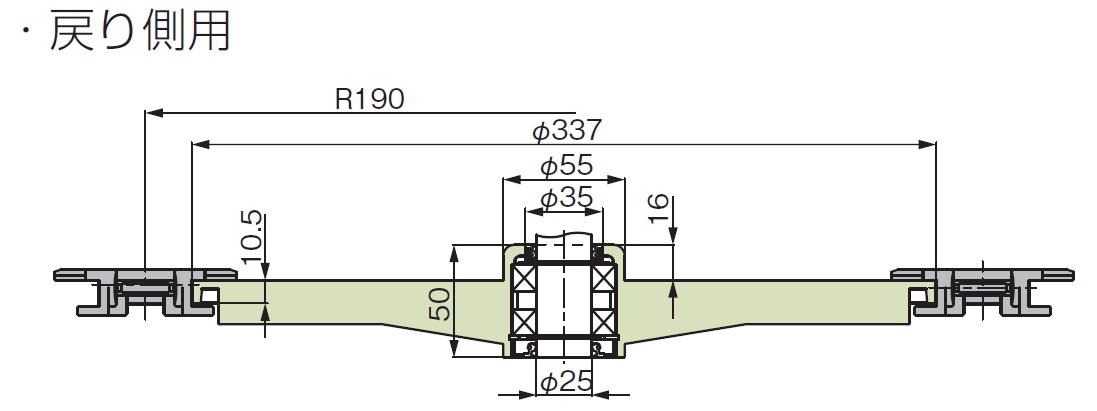

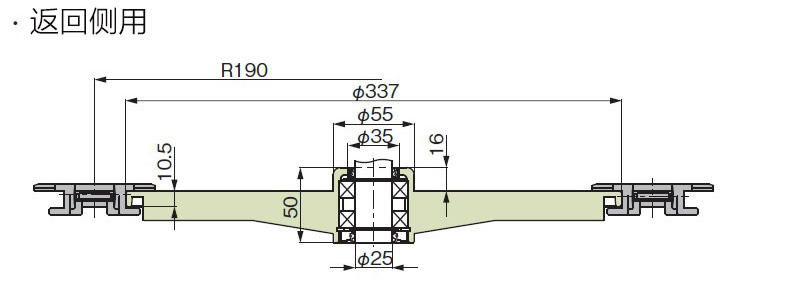

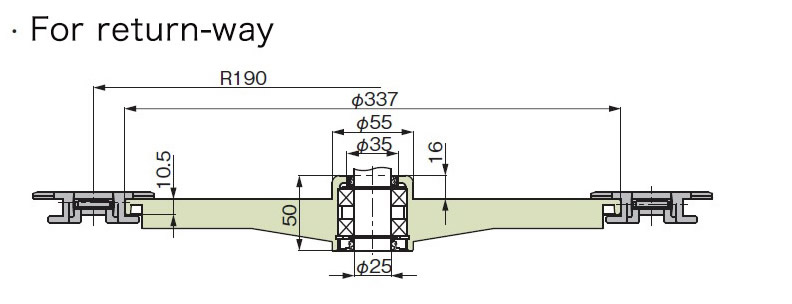

PDF Outline Drawing
CAD data in DXF format
See the table below
(Click here for a list of all DXF files )
Catalogs ・Instruction Manuals
Applicable Chains
TPUH-BO
Major Specifications
Applicable | Carry Way | Return Way |
---|---|---|
Model No. | TP-C12779T-CD | TP-C12777T-CD |
Main Body Material | Polyamide | |
Color | Black | |
Bearing | 6005-2RS (25×47×12) | |
O-ring seal | NBR | |
Retaining ring | Φ25 (DIN471) | |
Estimated Mass kg | 0.98 | |
Chain sideflex radius mm | R190 | |
Operating Temperature Range ℃ | -20~60 | |
CAD data in DXF format | DXF | DXF |
Standard Price | Contact us for details. | Contact us for details. |
Delivery | Contact us for details. | Contact us for details. |
Notes
1.Not recommended for conveying unstable containers.
2.Carry-way and return-way corner discs differ only in whether the shaft extends through the disc.
3.Bearings and O-ring seals are packaged separately and shipped in the same container as the disc unit.
