Top chain accessories

  • Accessories for top chain
  • Nose bars for minimizing dead spaces at transfer points, corner discs used in curved sections, transfer plates for plastic modular chain, and other accessories are available.

List of Model Numbers

※ Click the model No. for detailed information. Click to enlarge.

Search for applicable accessories for the chain model number .

アクセサリ形番を

Accessory name
(Click here for a list
of all series.)		 Applicable chain number
Nose Bars for WT1500 chain　 WT1505-K, WT1505GTO-K, WT1505GTO-M, WT1505TOD-M, WT1506-K, WT1515-W, WT1515G-W, WT1516-W


Type Base Model No. Width
mm
Sliding Series WT-NB 76, 151, 302
Integrated Bearing Series WT-NR 76(75.5), 151
Nose Bars for WT0705-W chain　 WT0705-W

Type Base Model No. Width
mm
Sliding Series WT-NB07-W50 50
Nose Bars for WT0705-M chain　 WT0705-M
Type Base Model No. Width
mm
Sliding Series WT-NB07-W30 30

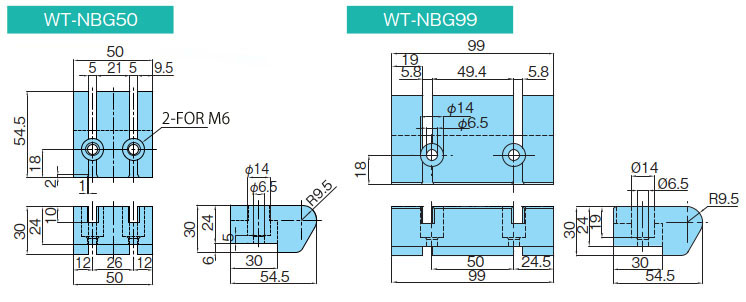

Nose Bars for WT1515G-M chain　 WT1515G-M

Type Base Model No. Width
mm
Sliding Series WT-NBG 50, 99
Dead Plate for WT1500 chain　 WT1505-K, WT1505G-K, WT1505G-M, WT1505GTO-K, WT1505GTO-M, WT1505TOD-M, WT1506-K, WT1515-W, WT1515G-W, WT1515G-M, WT1516-W, BTN5, BTN5-A

Base Model No. Length
mm
WT-DP 400, 550, 700, 850

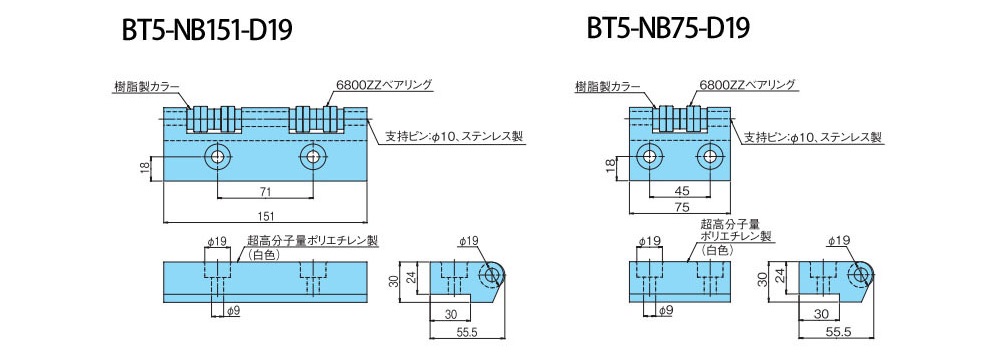

Nose Bars for BT5 Chain　 BTN5, BTN5-A

Type Base Model No. Width
mm
Integrated Bearing Series BT5-NB 75, 151
Transfer plate for WT1907 chain　 WT1907-K


Model No. Length
mm		 Width
mm

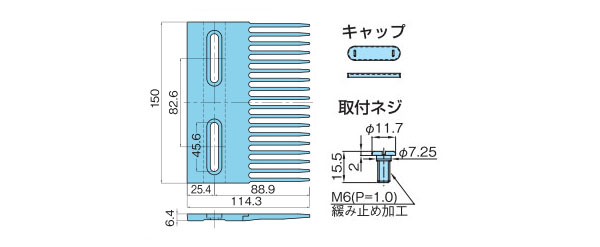

WT-TP1907-L114 114.3 150

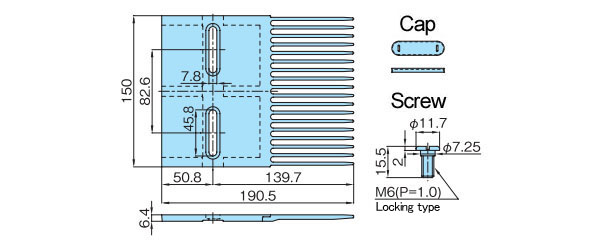

WT-TP1907-L190 190.5 150

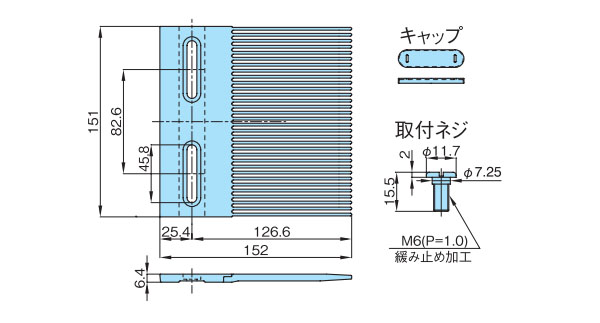

Transfer plate for WT3827 chain　 WT3827-K

Model No. Length
mm		 Width
mm
WT-TP3827-L152 152 151
Transfer plate for WT5707 chain　 WT5707-K

Model No. Length
mm		 Width
mm
WT-TP5707-L220 220 151
Corner Disk for TPU-USR Chain　 TPU-USR

Application Model No.
Carry Way, Return Way TPU826USR-CD-R190

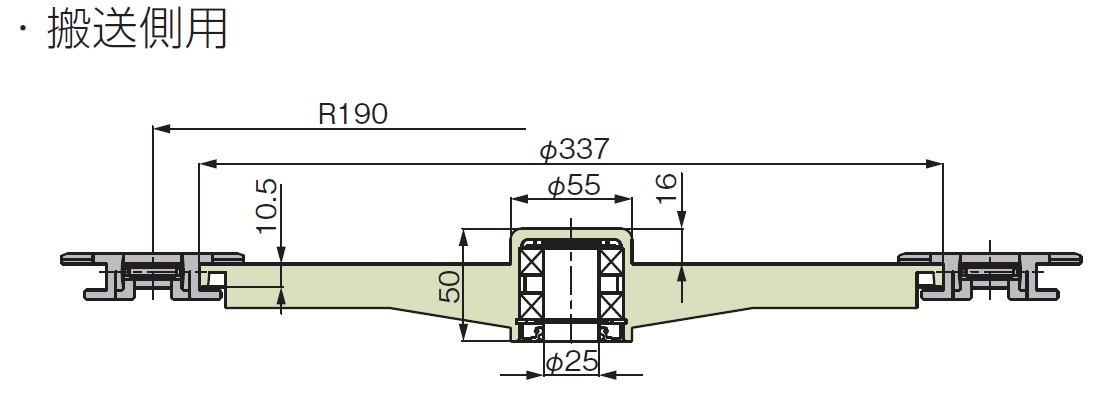

Corner Disk for TPUH-BO Chain　 TPUH-BO

Application Model No.
Carry Way TP-C12779T-CD
Return Way TP-C12777T-CD
Corner Disk for TPUSR550 Chain　 TPUSR550

Application Model No.
Carry Way TPUSR550-CD-R150C
Return Way TPUSR550-CD-R150R
Corner Disk for TPUSR826 Chain　 TPUSR826

Application Model No.
Carry Way TPUSR826-CD-R150C
Return Way TPUSR826-CD-R150R
Turn Discs for TP-UB36 Chain　 TP-UB36

Application Model No.
Carry Way PR-TP-UB36TW-D
Return Way PR-TP-UB36TW-R
Corner Disk for TPUN555 Chain　 TPUN555

Application Model No.
Carry Way TPUN555-CD-R150C
Return Way TPUN555-CD-R150R

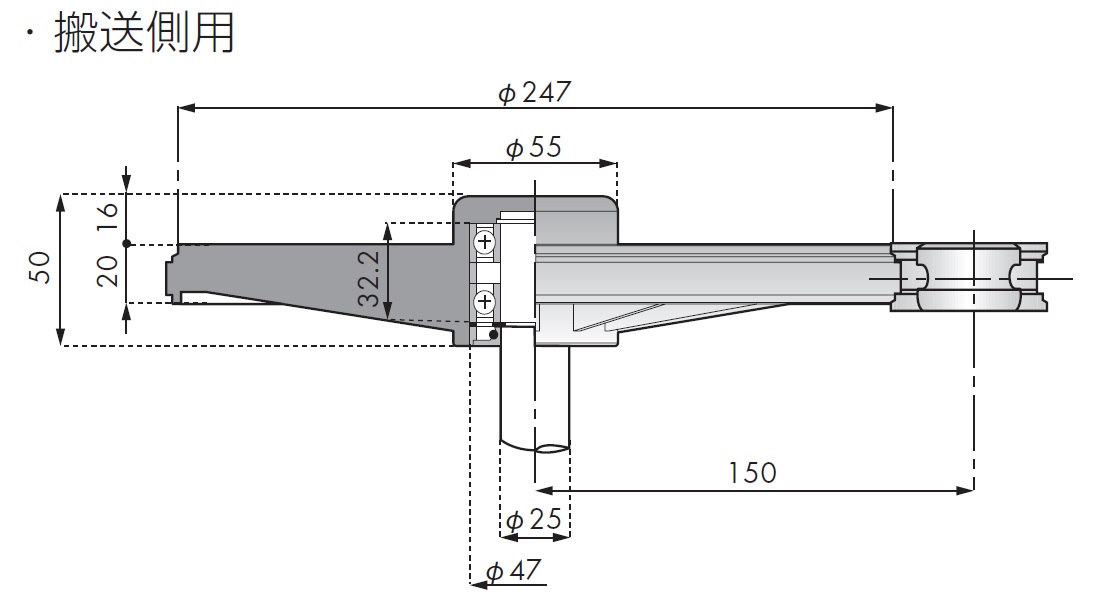

Corner Disk for TPUN-LH Chain　 TPUN535-LH, TPUN550-LH

Application Model No.
Carry Way TP-C12723T-CD
Return Way TP-C12725T-CD
Turn Discs for TP-50UNS Chain　 TP-50UNS

Type Application Model No.
Machined Carry Way TP-50UNST1
Return Way TP-50UNST2
Disconnecting and Connecting Tools For TTP826 and TTP1143 Top Chains　 TTP826, TTP1143

Applicable Chains Model No. Application
TTP826, TTP1143 TTP-KV-AST Disconnecting and Connecting
Disconnecting Tools For TT Top Chains　 TT

Applicable Chains Model No. Application
TT TT-AST only for disconnecting
Disconnecting and Connecting Tools For TPS, TTUP and TPU826 Top Chains　 TPS, TTUP, TPU826-KV

Applicable Chains Model No. Application
TPS, TTUP, TPU826-KV TPS-TPU-KV-AST Disconnecting and Connecting
Disconnecting Tools For TRU and TTKU Top Chains　 TRU, TTKU

Applicable Chains Model No. Application
TRU, TTKU TRU-TTKU-AST only for disconnecting
Disconnecting and Connecting Tools For TS Top Chains　 TS

Applicable Chains Model No. Application
TS TS-AST Disconnecting and Connecting
