RS Attachment Chains Major Specifications
RS80
[Click to enlarge ]
| ※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
| ※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals
Major Specifications
| Size | Max. allowable load kN {kgf} |
Estimated Mass kg/m |
No. of links per unit |
Operating temperature range |
|---|---|---|---|---|
| RS80 | 10.7{1090} | 2.66 | 120 | -10℃～150℃ |
Notes
1.Pins are riveted style
2.Connecting links are cotter pin type.
3.Cotter pins are used for offset links.
Principal dimensions mm
| Pitch P |
Roller dia. R |
Inner width of inner link W |
Plate | Pin | |||||
|---|---|---|---|---|---|---|---|---|---|
| Thickness T | Width H | Width h | Diameter D | L1 | L2 | L | |||
| 25.40 | 15.88 | 15.88 | 3.2 | 24.1 | 20.8 | 7.94 | 16.25 | 19.25 | 36.6 |
Can use an RS Sprocket.

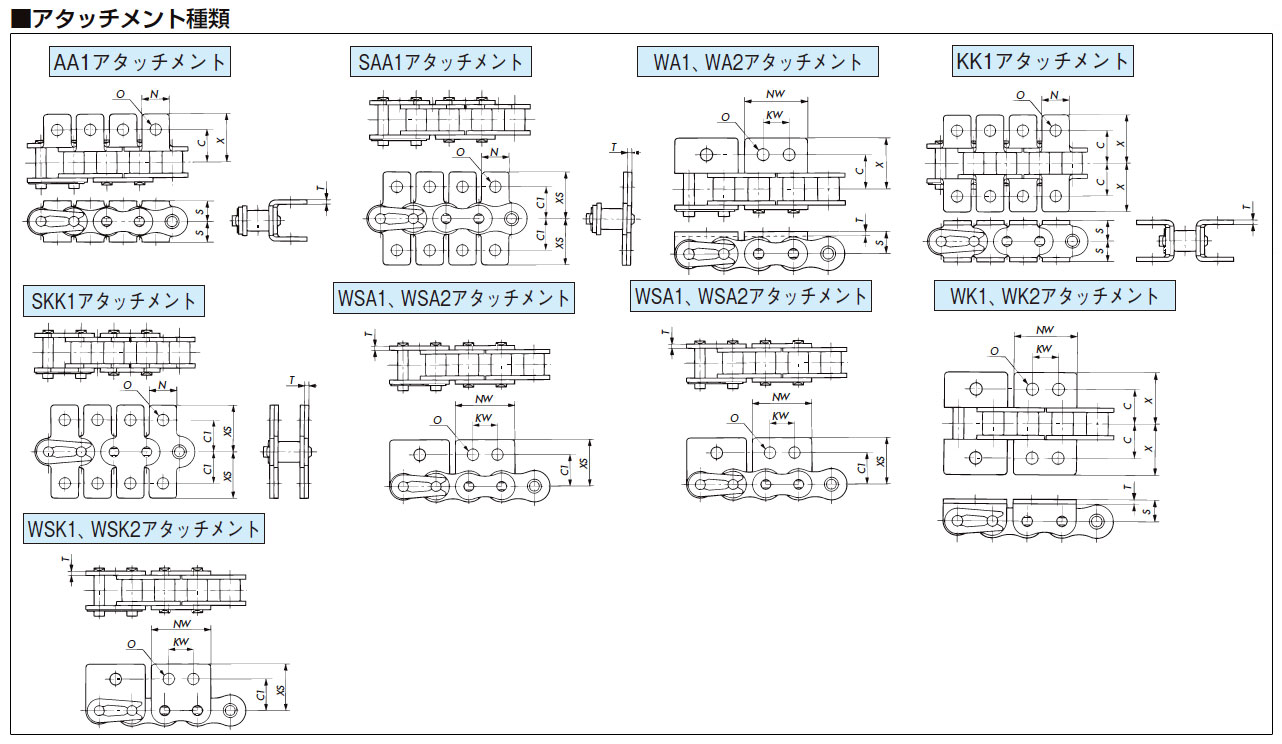

Attachment dimensions mm
| C | C1 | N | O | S | T | X | XS | NW | NW （For inner link ） | KW | Additional weight kg per attachment kg |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AA/SAA Attachment |
K/SKK Attachment |
WA/WSA Attachment |
WK/WSK Attachment |
|||||||||||
| 25.4 | 24.6 | 19.1 | 9.0 | 15.9 | 3.2 | 36.6 | 35.45 | 46.1 | 49.5 | 19.1 | 0.023 | 0.046 | 0.028 | 0.056 |
Notes
1.Check the hub dimensions when using AA, KK, SAA, and SKK Attachments to ensure they do not contact the sprocket hub.
2.Be careful that AA and KK Attachments do not contact each other when articulating.
3.NW above is the NW dimension when the attachment is on the inner link.
Price
Connecting link
| Model No. | Standard Price | Delivery |
|---|---|---|
| RS80-AA1-JL | Contact us for details. | Contact us for details. |
| RS80-SAA1-JL | Contact us for details. | Contact us for details. |
| RS80-KK1-JL | Contact us for details. | Contact us for details. |
| RS80-SKK1-JL | Contact us for details. | Contact us for details. |
| RS80-WA1-JL | Contact us for details. | Contact us for details. |
| RS80-WSA1-JL | Contact us for details. | Contact us for details. |
| RS80-WK1-JL | Contact us for details. | Contact us for details. |
| RS80-WSK1-JL | Contact us for details. | Contact us for details. |
| RS80-WA2-JL | Contact us for details. | Contact us for details. |
| RS80-WSA2-JL | Contact us for details. | Contact us for details. |
| RS80-WK2-JL | Contact us for details. | Contact us for details. |
| RS80-WSK2-JL | Contact us for details. | Contact us for details. |
