RS Lambda attachment chain Major Specifications
RS35-LMC

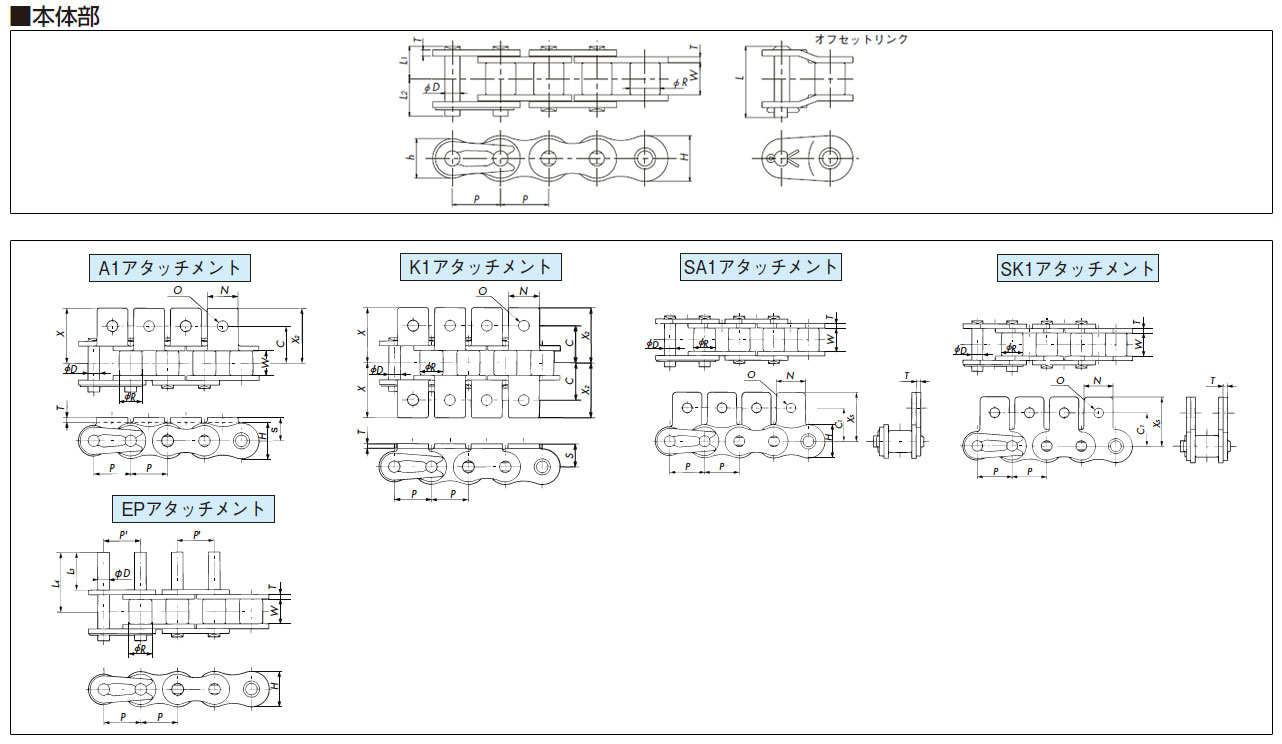

The diagram shows attachments on every link.
The actual dimensions for P' on EP Attachments differ from P. Contact a Tsubaki representative for more information.
The D dimension on EP Attachments have a slightly larger pin end.
PDF Outline Drawing
Contact us for details.
CAD data in DXF format
Contact us for details.
(Click here for a list of all DXF files )
Catalogs ・Instruction Manuals
Major Specifications
Size & Specification |
Max. allowable load kN {kgf} |
Estimated Mass kg/m |
No. of links per unit |
Operating temperature range |
---|---|---|---|---|
RS35-LMC | 1.52{155} | 0.33 | 320 | -10℃~150℃ |
Notes
1.Pins are riveted style
2.Connecting links are clip type.
Principal dimensions mm
Pitch P |
Roller dia. R |
Inner width of inner link W |
Plate | Pin | |||||
---|---|---|---|---|---|---|---|---|---|
Thickness T | Width H | Width h | Diameter D | L1 | L2 | L | |||
9.525 | (5.08) | 4.78 | 1.25 | 9.0 | 7.8 | 3.00 | 5.85 | 6.85 | 13.5 |
( ) indicates bush diameter.
Can use an RS Sprocket.
Attachment dimensions mm
C | C1 | N | O | S | X | X2 | XS | L3 | L4 | Additional weight kg per attachment kg |
||
---|---|---|---|---|---|---|---|---|---|---|---|---|
A/SA Attachment |
K/SK Attachment |
EP Attachment |
||||||||||
9.5 | 9.5 | 7.9 | 3.4 | 6.35 | 14.3 | 14.3 | 14.55 | 9.5 | 14.6 | 0.0008 | 0.0016 | 0.0008 |
RS35 and RS35-LMC have different pin diameters. The two cannot be connected.
・RS35-LMCのEPアタッチメントのD寸法はΦ3.0でRS35標準より細くなります。
Price
Connecting link
Model No. | Standard Price | Delivery |
---|---|---|
RS35-LMC-JL | Contact us for details. | Contact us for details. |
RS35-LMC-2-JL | Contact us for details. | Contact us for details. |
RS35-LMC-A1-JL | Contact us for details. | Contact us for details. |
RS35-LMC-SA1-JL | Contact us for details. | Contact us for details. |
RS35-LMC-K1-JL | Contact us for details. | Contact us for details. |
RS35-LMC-SK1-JL | Contact us for details. | Contact us for details. |
Offset link
Model No. | Standard Price | Delivery | DXF data |
---|---|---|---|
RS35-LMC-OL | Contact us for details. | Contact us for details. | DXF |
RS35-LMC-2-OL | Contact us for details. | Contact us for details. | DXF |
