Cam Clutch BS Series - Safety Covers Major Specifications
Model No. ：BS135SC
[Click to enlarge ]
PDF Outline Drawing
CAD data in DXF format
Contact us for details.
（Click here for a list of all DXF files )
3D CAD data
Contact us for details.
Standard Price
Contact us for details.
Delivery
Contact us for details.
Catalogs ・Instruction Manuals

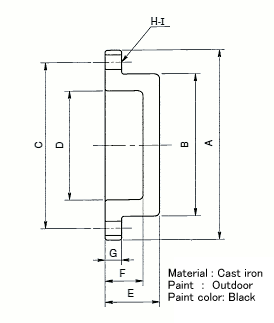

Table of Dimensions Units ：mm
| A | B | C | D | E | F | G | H-I | Hex Cap Bolts/Quantity | Mass kg |
|---|---|---|---|---|---|---|---|---|---|
| 320 | 230 | 280 | 214 | 50 | 42 | 10 | 8-17.5 | M16X40-8 | 7.5 |
