Axle Bearing Roller Major Specifications
JBR05-1
[Click to enlarge ]
Catalogs ・Instruction Manuals
Major Specifications
| Size & Specification code & Axle Type | Allowable load kN{kgf} |
Allowable Rotation Speed r/min |
Max. Bolt Tightening Torque Nm{kgfm} |
Estimated Mass kg |
Available Bolt Length |
|---|---|---|---|---|---|
| JBR05-1 | 3.04{310} | 185 | 58.8{6} | 0.28 | 20 |

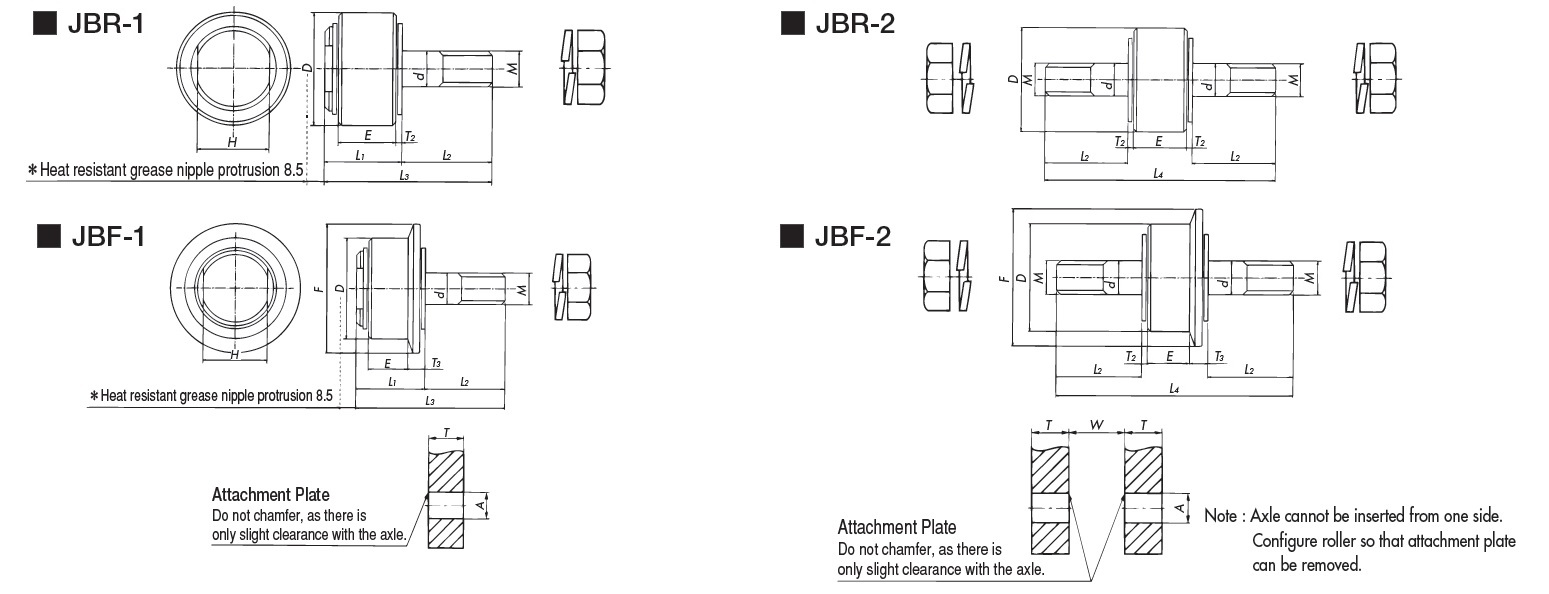

Principal dimensions
| Shaft diameter d |
Outer Diameter D |
Flange Dia. F |
H | Screw diameter M |
E | T2 | T3 | L1 | L2 | L3 | L4 | Attachment Plate | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | T | W | ||||||||||||
| 12 | 40 | --- | 27 | M12 | 19 | 2.5 | --- | 26.5 | 35.5 | 62 | 95 | 12.2 | 15～20 | 24 |
