Please consider replacing AS series with SS series

SS series was renewed in October 2022 and now the performance is equivalent or more to AS series.

Applicable sizes

RS :RS40~RS100、Double Pitch Chains :RF2040~RF2080

Wear life

SS series has longer life than AS series.

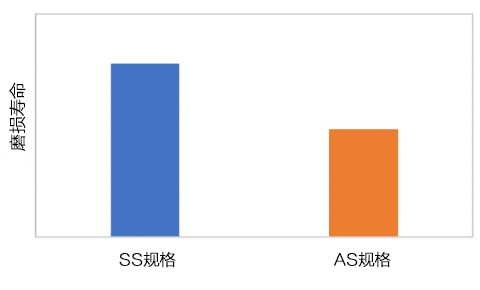

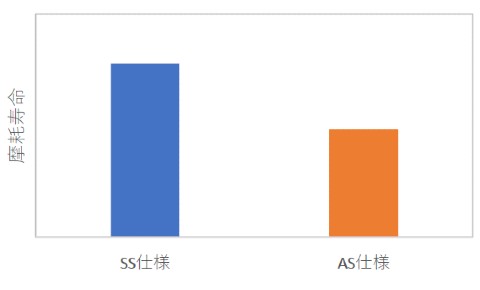

Wear life comparison

Wear life comparison

In-house Test Condition

  • Size :RS50 No. of links :66Links
  • Sprocket :17teeth (Drive ・Driven )
  • Speed :185r/min
  • Test Environment :Atmospheric 、Ambient temperature 、Dry condition

Max. allowable load

Maximum allowable load of SS series is equivalent to AS series.

List of max. allowable load

kN{kgf}
RS Double Pitch Chains SS Series AS Series
RS40 RF2040 0.69{70} 0.69{70}
RS50 RF2050 1.03{105} 1.03{105}
RS60 RF2060 1.57{160} 1.57{160}
RS80 RF2080 2.65{270} 2.65{270}

Corrosion resistance

SS series has higher corrosion resistance than AS series.

Comparison of corrosion resistance

SS Series AS Series

Price

About 25% of cost advantage by replacing to SS series.

Suggested price per unit※

Product name Price Index Product name Price Index
RS40-SS-1-RP-U 72 RS40-AS-1-RP-U 100
RS50-SS-1-RP-U 75 RS50-AS-1-RP-U 100
RS60-SS-1-RP-U 75 RS60-AS-1-RP-U 100
RS80-SS-1-RP-U 76 RS80-AS-1-RP-U 100

※1 unit is 3,048 mm long.

Flow Chart replacing to SS series

Subject product :All AS Series

Start

Is the chain continuously lubricated?

Yes



Able to replace

However, initial lubrication of the chain is required

No



Was the chain washed down before use?

Yes



Able to replace

No



Able to replace

※However, initial lubrication of the chain is required

Subject product :EP attachment or with stay pins

Start

Is the pin strength required?

Yes  or No clue



Selection Calculation Required

Refer below mentioned “Precaution of replacement “

No



Able to replace

Precaution of replacement

Lubrication

AS has pre lubricated for rust prevention purpose while SS has not.

AS series has longer life in that case, comparing pre lubricated AS and non pre lubricated SS series.

The users using without degreasing or lubricating additionally, lubrication is required even with the new SS series.

We can pre lube for new SS series upon request. (Special order )

EP attachment or with stay pins

Since the materials used for SS and AS series are different, replacing them with SS series will reduce the strength of the pins.

Calculation of pin strength selection is available upon request. Please contact us.
