Chain type pin gear attachment chain Major Specifications
RS100-K1
[Click to enlarge ]
PDF Outline Drawing
Contact us for details.
CAD data in DXF format
Catalogs ・Instruction Manuals
Major Specifications
| サイズ& アタッチメント形式 |
Max. allowable load kN {kgf} |
Estimated Mass kg/m |
Additional weight per attachment location (kg) |
No. of links per unit |
|---|---|---|---|---|
| RS100-K1 | 15.7{1600} | 3.99 | 0.052 | 96 |
Notes
1.Use heat-treated mounting bolts
2.Stocked unit

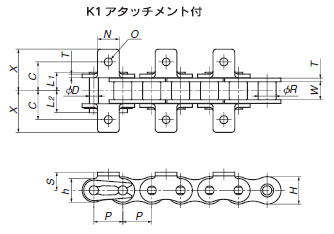

Principal dimensions mm
| Pitch P |
Roller dia. R |
Inner link inner width W |
Plate | Pin | ||||
|---|---|---|---|---|---|---|---|---|
| T | H | h | D | L1 | L2 | |||
| 31.75 | 19.05 | 19.05 | 4.0 | 30.1 | 26.0 | 9.54 | 19.75 | 22.85 |
Attachment dimensions mm
| C | N | O | S | X |
|---|---|---|---|---|
| 31.75 | 25.4 | 8.7 | 19.8 | 44.9 |
Price・Delivery
| Type | Unit | |
|---|---|---|
| Model No. | RS100-1LK1-U | RS100-2LK1-U |
| Standard Price | Contact us for details. | Contact us for details. |
| Delivery | Contact us for details. | Contact us for details. |
Applicable connecting link
| Type | Connecting link |
|---|---|
| Model No. | RS100-K1-JL |
| Standard Price | Contact us for details. |
| Delivery | Contact us for details. |
