Chain type pin gear attachment chain Major Specifications
RF320-T-K1

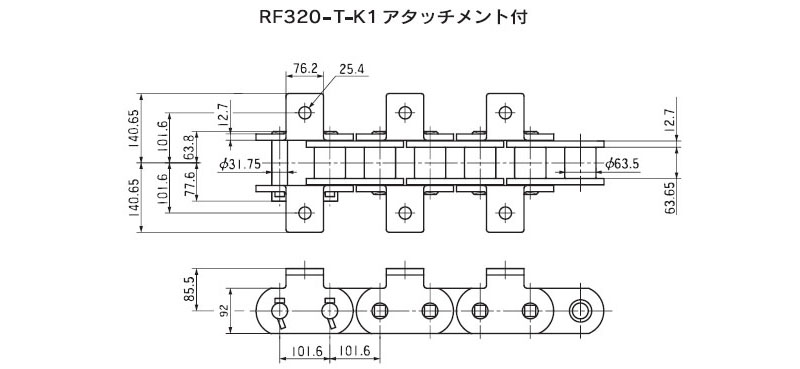

PDF Outline Drawing
Contact us for details.
CAD data in DXF format
Contact us for details.
(Click here for a list of all DXF files )
Catalogs ・Instruction Manuals
Major Specifications
サイズ&仕様& アタッチメント形式 |
Max. allowable load kN {kgf} |
Estimated Mass kg/m |
Additional weight per attachment location (kg) |
No. of links per unit |
---|---|---|---|---|
RF320-T-K1 | 104{10600} | 47.6 | 1.732 | 30 |
Notes
1.Made to order
Applicable connecting link
Type | Connecting link |
---|---|
Model No. | RF320-T-K1-JL |
Standard Price | Contact us for details. |
Delivery | Contact us for details. |
