Pin wheel - Model and Package

Note )
　1.Pin wheels are composed of and divided into segments. The number of segments differs depending on the frame/total pin numbers.
　2.There are protrusions on the inner side of each outer drive wheel segment, or on the outer side of each inner drive wheel segment. These form the reference plane for mounting on the companion equipment.
　3.Ensure that the inner diameter Diw of the outer drive pin wheel and the outer diameter Dow of the inner drive pin wheel are the outer and inner dimensions of the companion equipment.
　4.No mounting bolts provided.
　5.You can freely select the number of pins if the total number of those is 60 or more.
　6.Pin wheels with partial circumferences are also available.

Back to top

Model No. examples

・Entire circumference

PDU070 - G P F 300P - R
｜
Frame number 		｜
｜		 ｜
Pin wheel 		｜
｜		 ｜
No. of pins 		｜
Specification
No symbol ：Standard series (Steel)
K：Electroless nickel plated series (Steel)
R：Advanced rust protection series (Steel)
Y：Flexible Type
S：Standard series (Stainless steel)
｜
Drive Method
G：Outer rotary drive
N：Inner rotary drive 		｜
Mounting type
F：Flat type


・Partial circumference (less than 360º)

PDU070 - G P F 300P 090P - R
｜
Frame number 		｜
｜		 ｜
Pin wheel 		｜
｜		 ｜
No. of pins 		｜
No. of pins required 		｜
Specification
No symbol ：Standard series (Steel)
K：Electroless nickel plated series (Steel)
R：Advanced rust protection series (Steel)
Y：Flexible Type
S：Standard series (Stainless steel)
｜
Drive Method
G：Outer rotary drive
N：Inner rotary drive 		｜
Mounting type
F：Flat type

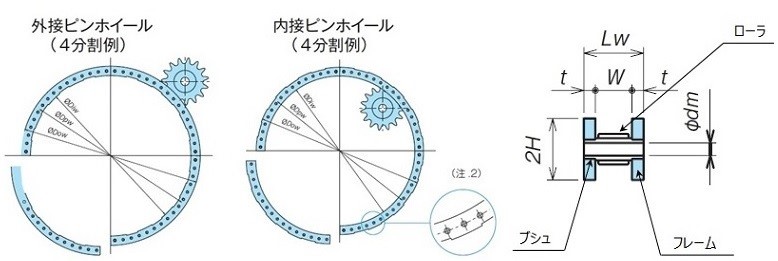

Pin Wheel Specifications

Frame number
(Click to show information for each total number of pins. )		 Pitch
P		 Roller dia.
Φ
mm		 Total width
LW
mm		 Inner width
W
mm		 Thickness:
t
mm		 Hollow pin bore diameter
Φdm
mm		 Mounting
bolt
size
PDU020　 20 10.16 21（S:22） 12 4.5（S:5） 4.5 M4
Model No. No. of pins
NT		 No. of segments Pitch circle dia.
ΦDpw
mm		 Outer Diameter
ΦDow
mm		 Inner diameter
ΦDiw
mm
PDU020-GPF080P,　PDU020-NPF080P
PDU020-GPF080P-S,　PDU020-NPF080P-S		 80 1 509.3 532 487
PDU020-GPF160P,　PDU020-NPF160P
PDU020-GPF160P-S,　PDU020-NPF160P-S		 160 4 1018.59 1041 996
PDU020-GPF240P,　PDU020-NPF240P
PDU020-GPF240P-S,　PDU020-NPF240P-S		 240 6 1527.89 1550 1505
PDU020-GPF320P,　PDU020-NPF320P
PDU020-GPF320P-S,　PDU020-NPF320P-S		 320 8 2037.18 2060 2015
PDU020-GPF480P,　PDU020-NPF480P
PDU020-GPF480P-S,　PDU020-NPF480P-S		 480 12 3055.77 3078 3033
PDU022　 22 11.91 25（S:26） 16 4.5（S:5） 4.5 M4
Model No. No. of pins
NT		 No. of segments Pitch circle dia.
ΦDpw
mm		 Outer Diameter
ΦDow
mm		 Inner diameter
ΦDiw
mm
PDU022-GPF072P,　PDU022-NPF072P
PDU022-GPF072P-S,　PDU022-NPF072P-S		 72 1 504.2 529 480
PDU022-GPF144P,　PDU022-NPF144P
PDU022-GPF144P-S,　PDU022-NPF144P-S		 144 4 1008.41 1033 984
PDU022-GPF216P,　PDU022-NPF216P
PDU022-GPF216P-S,　PDU022-NPF216P-S		 216 6 1512.61 1537 1488
PDU022-GPF288P,　PDU022-NPF288P
PDU022-GPF288P-S,　PDU022-NPF288P-S		 288 8 2016.81 2041 1992
PDU022-GPF432P,　PDU022-NPF432P
PDU022-GPF432P-S,　PDU022-NPF432P-S		 432 12 3025.22 3050 3001
PDU030　 30 15.88 31（S:31） 19 6（S:6） 6.5 M6
Model No. No. of pins
NT		 No. of segments Pitch circle dia.
ΦDpw
mm		 Outer Diameter
ΦDow
mm		 Inner diameter
ΦDiw
mm
--- 1 --- --- ---
PDU030-GPF104P,　PDU030-NPF104P
PDU030-GPF104P-R,　PDU030-NPF104P-R
PDU030-GPF104P-S,　PDU030-NPF104P-S		 104 4 993.13 1026 961
PDU030-GPF156P,　PDU030-NPF156P
PDU030-GPF156P-R,　PDU030-NPF156P-R
PDU030-GPF156P-S,　PDU030-NPF156P-S		 156 6 1489.69 1522 1457
PDU030-GPF208P,　PDU030-NPF208P
PDU030-GPF208P-R,　PDU030-NPF208P-R
PDU030-GPF208P-S,　PDU030-NPF208P-S		 208 8 1986.25 2019 1954
PDU030-GPF312P,　PDU030-NPF312P
PDU030-GPF312P-R,　PDU030-NPF312P-R
PDU030-GPF312P-S,　PDU030-NPF312P-S		 312 12 2979.38 3012 2947
PDU035　 35 19.05 40（S:34） 22 9（S:6） 8.8 M8
Model No. No. of pins
NT		 No. of segments Pitch circle dia.
ΦDpw
mm		 Outer Diameter
ΦDow
mm		 Inner diameter
ΦDiw
mm
--- 1 --- --- ---
PDU035-GPF088P,　PDU035-NPF088P
PDU035-GPF088P-R,　PDU035-NPF088P-R
PDU035-GPF088P-S,　PDU035-NPF088P-S		 88 4 980.39 1021 940
PDU035-GPF132P,　PDU035-NPF132P
PDU035-GPF132P-R,　PDU035-NPF132P-R
PDU035-GPF132P-S,　PDU035-NPF132P-S		 132 6 1470.59 1511 1430
PDU035-GPF176P,　PDU035-NPF176P
PDU035-GPF176P-R,　PDU035-NPF176P-R
PDU035-GPF176P-S,　PDU035-NPF176P-S		 176 8 1960.79 2001 1920
PDU035-GPF264P,　PDU035-NPF264P
PDU035-GPF264P-R,　PDU035-NPF264P-R
PDU035-GPF264P-S,　PDU035-NPF264P-S		 264 12 2941.18 2982 2901
PDU040　 40 22.23 46（S:44） 28 9（S:8） 10.8 M10
Model No. No. of pins
NT		 No. of segments Pitch circle dia.
ΦDpw
mm		 Outer Diameter
ΦDow
mm		 Inner diameter
ΦDiw
mm
--- 1 --- --- ---
PDU040-GPF080P,　PDU040-NPF080P
PDU040-GPF080P-R,　PDU040-NPF080P-R
PDU040-GPF080P-S,　PDU040-NPF080P-S		 80 4 1018.59 1067 970
PDU040-GPF120P,　PDU040-NPF120P
PDU040-GPF120P-R,　PDU040-NPF120P-R
PDU040-GPF120P-S,　PDU040-NPF120P-S		 120 6 1527.89 1576 1479
PDU040-GPF160P,　PDU040-NPF160P
PDU040-GPF160P-R,　PDU040-NPF160P-R
PDU040-GPF160P-S,　PDU040-NPF160P-S		 160 8 2037.18 2086 1989
PDU040-GPF240P,　PDU040-NPF240P
PDU040-GPF240P-R,　PDU040-NPF240P-R
PDU040-GPF240P-S,　PDU040-NPF240P-S		 240 12 3055.77 3104 3007
PDU050　 50 25.4 52（S:46） 28 12（S:9） 12.8 M12
Model No. No. of pins
NT		 No. of segments Pitch circle dia.
ΦDpw
mm		 Outer Diameter
ΦDow
mm		 Inner diameter
ΦDiw
mm
PDU050-GPF100P,　PDU050-NPF100P
PDU050-GPF100P-R,　PDU050-NPF100P-R
PDU050-GPF100P-S,　PDU050-NPF100P-S		 100 5 1591.55 1647 1536
PDU050-GPF120P,　PDU050-NPF120P
PDU050-GPF120P-R,　PDU050-NPF120P-R
PDU050-GPF120P-S,　PDU050-NPF120P-S		 120 6 1909.86 1965 1854
PDU050-GPF180P,　PDU050-NPF180P
PDU050-GPF180P-R,　PDU050-NPF180P-R
PDU050-GPF180P-S,　PDU050-NPF180P-S		 180 9 2864.79 2920 2809
PDU050-GPF260P,　PDU050-NPF260P
PDU050-GPF260P-R,　PDU050-NPF260P-R
PDU050-GPF260P-S,　PDU050-NPF260P-S		 260 13 4138.03 4194 4083
PDU050-GPF320P,　PDU050-NPF320P
PDU050-GPF320P-R,　PDU050-NPF320P-R
PDU050-GPF320P-S,　PDU050-NPF320P-S		 320 16 5092.96 5148 5037
PDU055　 55 28.58 60（S:54） 36 12（S:9） 12.8 M12
Model No. No. of pins
NT		 No. of segments Pitch circle dia.
ΦDpw
mm		 Outer Diameter
ΦDow
mm		 Inner diameter
ΦDiw
mm
PDU055-GPF090P,　PDU055-NPF090P
PDU055-GPF090P-R,　PDU055-NPF090P-R
PDU055-GPF090P-S,　PDU055-NPF090P-S		 90 5 1575.63 1640 1511
PDU055-GPF108P,　PDU055-NPF108P
PDU055-GPF108P-R,　PDU055-NPF108P-R
PDU055-GPF108P-S,　PDU055-NPF108P-S		 108 6 1890.76 1955 1826
PDU055-GPF162P,　PDU055-NPF162P
PDU055-GPF162P-R,　PDU055-NPF162P-R
PDU055-GPF162P-S,　PDU055-NPF162P-S		 162 9 2836.14 2901 2772
PDU055-GPF234P,　PDU055-NPF234P
PDU055-GPF234P-R,　PDU055-NPF234P-R
PDU055-GPF234P-S,　PDU055-NPF234P-S		 234 13 4096.65 4161 4032
PDU055-GPF288P,　PDU055-NPF288P
PDU055-GPF288P-R,　PDU055-NPF288P-R
PDU055-GPF288P-S,　PDU055-NPF288P-S		 288 16 5042.03 5107 4978
PDU070　 70 35.71 72（S:60） 40 16（S:10） 17 M16
Model No. No. of pins
NT		 No. of segments Pitch circle dia.
ΦDpw
mm		 Outer Diameter
ΦDow
mm		 Inner diameter
ΦDiw
mm
PDU070-GPF070P,　PDU070-NPF070P
PDU070-GPF070P-R,　PDU070-NPF070P-R
PDU070-GPF070P-S,　PDU070-NPF070P-S		 70 5 1559.72 1632 1487
PDU070-GPF084P,　PDU070-NPF084P
PDU070-GPF084P-R,　PDU070-NPF084P-R
PDU070-GPF084P-S,　PDU070-NPF084P-S		 84 6 1871.66 1944 1799
PDU070-GPF126P,　PDU070-NPF126P
PDU070-GPF126P-R,　PDU070-NPF126P-R
PDU070-GPF126P-S,　PDU070-NPF126P-S		 126 9 2807.49 2880 2735
PDU070-GPF182P,　PDU070-NPF182P
PDU070-GPF182P-R,　PDU070-NPF182P-R
PDU070-GPF182P-S,　PDU070-NPF182P-S		 182 13 4055.27 4128 3983
PDU070-GPF224P,　PDU070-NPF224P
PDU070-GPF224P-R,　PDU070-NPF224P-R
PDU070-GPF224P-S,　PDU070-NPF224P-S		 224 16 4991.10 5064 4919
PDU080　 80 39.68 74（S:66） 42 16（S:12） 17 M16
Model No. No. of pins
NT		 No. of segments Pitch circle dia.
ΦDpw
mm		 Outer Diameter
ΦDow
mm		 Inner diameter
ΦDiw
mm
PDU080-GPF060P,　PDU080-NPF060P
PDU080-GPF060P-R,　PDU080-NPF060P-R
PDU080-GPF060P-S,　PDU080-NPF060P-S		 60 5 1527.89 1608 1447
PDU080-GPF072P,　PDU080-NPF072P
PDU080-GPF072P-R,　PDU080-NPF072P-R
PDU080-GPF072P-S,　PDU080-NPF072P-S		 72 6 1833.46 1914 1753
PDU080-GPF108P,　PDU080-NPF108P
PDU080-GPF108P-R,　PDU080-NPF108P-R
PDU080-GPF108P-S,　PDU080-NPF108P-S		 108 9 2750.20 2831 2670
PDU080-GPF156P,　PDU080-NPF156P
PDU080-GPF156P-R,　PDU080-NPF156P-R
PDU080-GPF156P-S,　PDU080-NPF156P-S		 156 13 3972.51 4053 3892
PDU080-GPF192P,　PDU080-NPF192P
PDU080-GPF192P-R,　PDU080-NPF192P-R
PDU080-GPF192P-S,　PDU080-NPF192P-S		 192 16 4889.24 4970 4809
PDU090　 90 47.63 90（S:76） 52 19（S:12） 22 M20
Model No. No. of pins
NT		 No. of segments Pitch circle dia.
ΦDpw
mm		 Outer Diameter
ΦDow
mm		 Inner diameter
ΦDiw
mm
--- 5 --- --- ---
PDU090-GPF066P,　PDU090-NPF066P
PDU090-GPF066P-R,　PDU090-NPF066P-R
PDU090-GPF066P-S,　PDU090-NPF066P-S		 66 6 1890.76 1987 1794
PDU090-GPF099P,　PDU090-NPF099P
PDU090-GPF099P-R,　PDU090-NPF099P-R
PDU090-GPF099P-S,　PDU090-NPF099P-S		 99 9 2836.14 2933 2740
PDU090-GPF143P,　PDU090-NPF143P
PDU090-GPF143P-R,　PDU090-NPF143P-R
PDU090-GPF143P-S,　PDU090-NPF143P-S		 143 13 4096.65 4193 4000
PDU090-GPF176P,　PDU090-NPF176P
PDU090-GPF176P-R,　PDU090-NPF176P-R
PDU090-GPF176P-S,　PDU090-NPF176P-S		 176 16 5042.03 5139 4946
PDU120　 120 63.5 112 68 22 32 M30
Model No. No. of pins
NT		 No. of segments Pitch circle dia.
ΦDpw
mm		 Outer Diameter
ΦDow
mm		 Inner diameter
ΦDiw
mm
PDU120-GPF072P,　PDU120-NPF072P
PDU120-GPF072P-R,　PDU120-NPF072P-R		 72 9 2750.20 2901 2600
PDU120-GPF080P,　PDU120-NPF080P
PDU120-GPF080P-R,　PDU120-NPF080P-R		 80 10 3055.77 3206 2905
PDU120-GPF104P,　PDU120-NPF104P
PDU120-GPF104P-R,　PDU120-NPF104P-R		 104 13 3972.51 4123 3822
PDU120-GPF128P,　PDU120-NPF128P
PDU120-GPF128P-R,　PDU120-NPF128P-R		 128 16 4889.24 5040 4739
PDU120-GPF160P,　PDU120-NPF160P
PDU120-GPF160P-R,　PDU120-NPF160P-R		 160 20 6111.55 6262 5961
PDU150　 150 79.38 138 94 22 39 M36
Model No. No. of pins
NT		 No. of segments Pitch circle dia.
ΦDpw
mm		 Outer Diameter
ΦDow
mm		 Inner diameter
ΦDiw
mm
PDU150-GPF072P,　PDU150-NPF072P 72 9 3437.75 3588 3287
PDU150-GPF080P,　PDU150-NPF080P 80 10 3819.72 3970 3669
PDU150-GPF104P,　PDU150-NPF104P 104 13 4965.63 5116 4815
PDU150-GPF128P,　PDU150-NPF128P 128 16 6111.55 6262 5961
PDU150-GPF160P,　PDU150-NPF160P 160 20 7639.44 7790 7489
PDU180　 180 95.25 172 112 30 45 M42
Model No. No. of pins
NT		 No. of segments Pitch circle dia.
ΦDpw
mm		 Outer Diameter
ΦDow
mm		 Inner diameter
ΦDiw
mm
PDU180-GPF063P,　PDU180-NPF063P 63 9 3609.63 3810 3409
PDU180-GPF070P,　PDU180-NPF070P 70 10 4010.71 4211 3810
PDU180-GPF091P,　PDU180-NPF091P 91 13 5213.92 5414 5013
PDU180-GPF112P,　PDU180-NPF112P 112 16 6417.13 6618 6217
PDU180-GPF140P,　PDU180-NPF140P 140 20 8021.41 8222 7821
PDU240　 240 127 226 150 38 52 M48
Model No. No. of pins
NT		 No. of segments Pitch circle dia.
ΦDpw
mm		 Outer Diameter
ΦDow
mm		 Inner diameter
ΦDiw
mm
--- 9 --- --- ---
--- 10 --- --- ---
PDU240-GPF065P,　PDU240-NPF065P 65 13 4965.63 5216 4715
PDU240-GPF080P,　PDU240-NPF080P 80 16 6111.55 6362 5861
PDU240-GPF100P,　PDU240-NPF100P 100 20 7639.44 7890 7389

Pin Gear for Rotary Drives Model Type and Specification

Model No. examples

PDU070 - G G C 017T 300P - R
｜
Frame number 		｜
｜		 ｜
Pin gear 		｜
｜		 ｜
Number of teeth 		｜
No. of pins for pin wheels 		｜
Specification
No symbol ：Standard series (Steel)
K：Electroless nickel plated series (Steel)
R：Advanced rust protection series (Steel)
Y：Flexible Type
S：Standard series (Stainless steel)
｜
Drive Method
G：Outer rotary drive
N：Inner rotary drive 		｜
Pin gear style
B：Single hub
C：Dual hub


Manufacturing specifications

Steel type Stainless steel type
Material Carbon steel for machine structural use Stainless Steel
Construction B type / C type
Hardened Teeth Induction hardened and tempered None
*Materials other than the above are made-to-order.
*Shaft bore finishing service available.
Back to top

Pin gear applicable no. of teeth range

O: Usable
△: Tangential load will decrease in certain usage conditions. Contact a Tsubaki representative for details.
X: Unusable (engagement ratio too small)
Number of teeth
NT		 Linear rack Outer Drive Pin Wheel Inner Drive Pin Wheel
607080100150200250300607080100150200250
11×××××××××○○○○×××
12△××××××××○○○○○○○
13○×××××△△△○○○○○○○
14○××△△△△△△○○○○○○○
15○△△△△△△△△○○○○○○○
16○△△△△△△△△○○○○○○○
17○△△△△△△△○○○○○○○○
18○△△△△△△○○○○○○○○○
19○△△△△○○○○○○○○○○○
20○△△△○○○○○○○○○○○○
21○△△○○○○○○○○○○○○○
22○△○○○○○○○○○○○○○○
23○△○○○○○○○○○○○○○○
More than 24 ○○○○○○○○○○○○○○○○

Pin Gear Specifications for Rotary Drive

Frame number
(Click to show information for
each tooth number. )		 Pitch
P
mm		 Roller dia.
d
mm		 Pin gear face width
T
mm
PDU020　 20 10.16 9
Model No. Number of teeth
NT		 Pitch circle dia.
ΦDa
mm		 Reference outer diameter
ΦDo
mm		 Shaft Bore Diameter
Φd
mm		 Hub
Plain Bore Diameter
ΦDH
mm		 Length
LH
mm
PDU020-GGC012T□□□P,　PDU020-GGB012T□□□P
PDU020-GGC012T□□□P-S,　PDU020-GGB012T□□□P-S
PDU020-NGC012T□□□P,　PDU020-NGB012T□□□P
PDU020-NGC012T□□□P-S,　PDU020-NGB012T□□□P-S
 12 78.59 95 12.7 49 20
PDU020-GGC013T□□□P,　PDU020-GGB013T□□□P
PDU020-GGC013T□□□P-S,　PDU020-GGB013T□□□P-S
PDU020-NGC013T□□□P,　PDU020-NGB013T□□□P
PDU020-NGC013T□□□P-S,　PDU020-NGB013T□□□P-S
 13 84.76 101 12.7 50 30
PDU020-GGC014T□□□P,　PDU020-GGB014T□□□P
PDU020-GGC014T□□□P-S,　PDU020-GGB014T□□□P-S
PDU020-NGC014T□□□P,　PDU020-NGB014T□□□P
PDU020-NGC014T□□□P-S,　PDU020-NGB014T□□□P-S
 14 91.13 108 12.7 50 30
PDU020-GGC015T□□□P,　PDU020-GGB015T□□□P
PDU020-GGC015T□□□P-S,　PDU020-GGB015T□□□P-S
PDU020-NGC015T□□□P,　PDU020-NGB015T□□□P
PDU020-NGC015T□□□P-S,　PDU020-NGB015T□□□P-S
 15 97.29 114 12.7 50 30
PDU020-GGC016T□□□P,　PDU020-GGB016T□□□P
PDU020-GGC016T□□□P-S,　PDU020-GGB016T□□□P-S
PDU020-NGC016T□□□P,　PDU020-NGB016T□□□P
PDU020-NGC016T□□□P-S,　PDU020-NGB016T□□□P-S
 16 103.66 120 12.7 50 30
PDU020-GGC024T□□□P,　PDU020-GGB024T□□□P
PDU020-GGC024T□□□P-S,　PDU020-GGB024T□□□P-S
PDU020-NGC024T□□□P,　PDU020-NGB024T□□□P
PDU020-NGC024T□□□P-S,　PDU020-NGB024T□□□P-S
 24 153.99 167 15.9 60 40
PDU022　 22 11.91 12
Model No. Number of teeth
NT		 Pitch circle dia.
ΦDa
mm		 Reference outer diameter
ΦDo
mm		 Shaft Bore Diameter
Φd
mm		 Hub
Plain Bore Diameter
ΦDH
mm		 Length
LH
mm
PDU022-GGC012T□□□P,　PDU022-GGB012T□□□P
PDU022-GGC012T□□□P-S,　PDU022-GGB012T□□□P-S
PDU022-NGC012T□□□P,　PDU022-NGB012T□□□P
PDU022-NGC012T□□□P-S,　PDU022-NGB012T□□□P-S
 12 86.83 104 12.7 50 40
PDU022-GGC013T□□□P,　PDU022-GGB013T□□□P
PDU022-GGC013T□□□P-S,　PDU022-GGB013T□□□P-S
PDU022-NGC013T□□□P,　PDU022-NGB013T□□□P
PDU022-NGC013T□□□P-S,　PDU022-NGB013T□□□P-S
 13 93.44 111 15.9 60 40
PDU022-GGC014T□□□P,　PDU022-GGB014T□□□P
PDU022-GGC014T□□□P-S,　PDU022-GGB014T□□□P-S
PDU022-NGC014T□□□P,　PDU022-NGB014T□□□P
PDU022-NGC014T□□□P-S,　PDU022-NGB014T□□□P-S
 14 100.44 119 15.9 60 40
PDU022-GGC015T□□□P,　PDU022-GGB015T□□□P
PDU022-GGC015T□□□P-S,　PDU022-GGB015T□□□P-S
PDU022-NGC015T□□□P,　PDU022-NGB015T□□□P
PDU022-NGC015T□□□P-S,　PDU022-NGB015T□□□P-S
 15 107.04 126 15.9 60 40
PDU022-GGC016T□□□P,　PDU022-GGB016T□□□P
PDU022-GGC016T□□□P-S,　PDU022-GGB016T□□□P-S
PDU022-NGC016T□□□P,　PDU022-NGB016T□□□P
PDU022-NGC016T□□□P-S,　PDU022-NGB016T□□□P-S
 16 114.05 132 15.9 70 40
PDU022-GGC024T□□□P,　PDU022-GGB024T□□□P
PDU022-GGC024T□□□P-S,　PDU022-GGB024T□□□P-S
PDU022-NGC024T□□□P,　PDU022-NGB024T□□□P
PDU022-NGC024T□□□P-S,　PDU022-NGB024T□□□P-S
 24 169.47 184 18 70 50
PDU030　 30 15.88 15
Model No. Number of teeth
NT		 Pitch circle dia.
ΦDa
mm		 Reference outer diameter
ΦDo
mm		 Shaft Bore Diameter
Φd
mm		 Hub
Plain Bore Diameter
ΦDH
mm		 Length
LH
mm
PDU030-GGC012T□□□P,　PDU030-GGB012T□□□P
PDU030-GGC012T□□□P-R,　PDU030-GGB012T□□□P-R
PDU030-GGC012T□□□P-S,　PDU030-GGB012T□□□P-S
PDU030-NGC012T□□□P,　PDU030-NGB012T□□□P
PDU030-NGC012T□□□P-R,　PDU030-NGB012T□□□P-R
PDU030-NGC012T□□□P-S,　PDU030-NGB012T□□□P-S
 12 117.79 142 19 75 50
PDU030-GGC013T□□□P,　PDU030-GGB013T□□□P
PDU030-GGC013T□□□P-R,　PDU030-GGB013T□□□P-R
PDU030-GGC013T□□□P-S,　PDU030-GGB013T□□□P-S
PDU030-NGC013T□□□P,　PDU030-NGB013T□□□P
PDU030-NGC013T□□□P-R,　PDU030-NGB013T□□□P-R
PDU030-NGC013T□□□P-S,　PDU030-NGB013T□□□P-S
 13 126.94 151 19 80 50
PDU030-GGC014T□□□P,　PDU030-GGB014T□□□P
PDU030-GGC014T□□□P-R,　PDU030-GGB014T□□□P-R
PDU030-GGC014T□□□P-S,　PDU030-GGB014T□□□P-S
PDU030-NGC014T□□□P,　PDU030-NGB014T□□□P
PDU030-NGC014T□□□P-R,　PDU030-NGB014T□□□P-R
PDU030-NGC014T□□□P-S,　PDU030-NGB014T□□□P-S
 14 136.49 162 19 80 50
PDU030-GGC015T□□□P,　PDU030-GGB015T□□□P
PDU030-GGC015T□□□P-R,　PDU030-GGB015T□□□P-R
PDU030-GGC015T□□□P-S,　PDU030-GGB015T□□□P-S
PDU030-NGC015T□□□P,　PDU030-NGB015T□□□P
PDU030-NGC015T□□□P-R,　PDU030-NGB015T□□□P-R
PDU030-NGC015T□□□P-S,　PDU030-NGB015T□□□P-S
 15 145.84 171 19 80 50
PDU030-GGC016T□□□P,　PDU030-GGB016T□□□P
PDU030-GGC016T□□□P-R,　PDU030-GGB016T□□□P-R
PDU030-GGC016T□□□P-S,　PDU030-GGB016T□□□P-S
PDU030-NGC016T□□□P,　PDU030-NGB016T□□□P
PDU030-NGC016T□□□P-R,　PDU030-NGB016T□□□P-R
PDU030-NGC016T□□□P-S,　PDU030-NGB016T□□□P-S
 16 155.39 180 19 80 60
PDU030-GGC024T□□□P,　PDU030-GGB024T□□□P
PDU030-GGC024T□□□P-R,　PDU030-GGB024T□□□P-R
PDU030-GGC024T□□□P-S,　PDU030-GGB024T□□□P-S
PDU030-NGC024T□□□P,　PDU030-NGB024T□□□P
PDU030-NGC024T□□□P-R,　PDU030-NGB024T□□□P-R
PDU030-NGC024T□□□P-S,　PDU030-NGB024T□□□P-S
 24 230.98 251 23 100 70
PDU035　 35 19.05 18
Model No. Number of teeth
NT		 Pitch circle dia.
ΦDa
mm		 Reference outer diameter
ΦDo
mm		 Shaft Bore Diameter
Φd
mm		 Hub
Plain Bore Diameter
ΦDH
mm		 Length
LH
mm
PDU035-GGC012T□□□P,　PDU035-GGB012T□□□P
PDU035-GGC012T□□□P-R,　PDU035-GGB012T□□□P-R
PDU035-GGC012T□□□P-S,　PDU035-GGB012T□□□P-S
PDU035-NGC012T□□□P,　PDU035-NGB012T□□□P
PDU035-NGC012T□□□P-R,　PDU035-NGB012T□□□P-R
PDU035-NGC012T□□□P-S,　PDU035-NGB012T□□□P-S
 12 137.49 166 23 85 80
PDU035-GGC013T□□□P,　PDU035-GGB013T□□□P
PDU035-GGC013T□□□P-R,　PDU035-GGB013T□□□P-R
PDU035-GGC013T□□□P-S,　PDU035-GGB013T□□□P-S
PDU035-NGC013T□□□P,　PDU035-NGB013T□□□P
PDU035-NGC013T□□□P-R,　PDU035-NGB013T□□□P-R
PDU035-NGC013T□□□P-S,　PDU035-NGB013T□□□P-S
 13 148.43 177 23 95 80
PDU035-GGC014T□□□P,　PDU035-GGB014T□□□P
PDU035-GGC014T□□□P-R,　PDU035-GGB014T□□□P-R
PDU035-GGC014T□□□P-S,　PDU035-GGB014T□□□P-S
PDU035-NGC014T□□□P,　PDU035-NGB014T□□□P
PDU035-NGC014T□□□P-R,　PDU035-NGB014T□□□P-R
PDU035-NGC014T□□□P-S,　PDU035-NGB014T□□□P-S
 14 159.57 189 23 110 90
PDU035-GGC015T□□□P,　PDU035-GGB015T□□□P
PDU035-GGC015T□□□P-R,　PDU035-GGB015T□□□P-R
PDU035-GGC015T□□□P-S,　PDU035-GGB015T□□□P-S
PDU035-NGC015T□□□P,　PDU035-NGB015T□□□P
PDU035-NGC015T□□□P-R,　PDU035-NGB015T□□□P-R
PDU035-NGC015T□□□P-S,　PDU035-NGB015T□□□P-S
 15 170.51 200 28 110 90
PDU035-GGC016T□□□P,　PDU035-GGB016T□□□P
PDU035-GGC016T□□□P-R,　PDU035-GGB016T□□□P-R
PDU035-GGC016T□□□P-S,　PDU035-GGB016T□□□P-S
PDU035-NGC016T□□□P,　PDU035-NGB016T□□□P
PDU035-NGC016T□□□P-R,　PDU035-NGB016T□□□P-R
PDU035-NGC016T□□□P-S,　PDU035-NGB016T□□□P-S
 16 181.65 210 28 120 100
PDU035-GGC024T□□□P,　PDU035-GGB024T□□□P
PDU035-GGC024T□□□P-R,　PDU035-GGB024T□□□P-R
PDU035-GGC024T□□□P-S,　PDU035-GGB024T□□□P-S
PDU035-NGC024T□□□P,　PDU035-NGB024T□□□P
PDU035-NGC024T□□□P-R,　PDU035-NGB024T□□□P-R
PDU035-NGC024T□□□P-S,　PDU035-NGB024T□□□P-S
 24 269.58 293 33 130 110
PDU040　 40 22.23 24
Model No. Number of teeth
NT		 Pitch circle dia.
ΦDa
mm		 Reference outer diameter
ΦDo
mm		 Shaft Bore Diameter
Φd
mm		 Hub
Plain Bore Diameter
ΦDH
mm		 Length
LH
mm
PDU040-GGC012T□□□P,　PDU040-GGB012T□□□P
PDU040-GGC012T□□□P-R,　PDU040-GGB012T□□□P-R
PDU040-GGC012T□□□P-S,　PDU040-GGB012T□□□P-S
PDU040-NGC012T□□□P,　PDU040-NGB012T□□□P
PDU040-NGC012T□□□P-R,　PDU040-NGB012T□□□P-R
PDU040-NGC012T□□□P-S,　PDU040-NGB012T□□□P-S
 12 157.79 189 28 100 90
PDU040-GGC013T□□□P,　PDU040-GGB013T□□□P
PDU040-GGC013T□□□P-R,　PDU040-GGB013T□□□P-R
PDU040-GGC013T□□□P-S,　PDU040-GGB013T□□□P-S
PDU040-NGC013T□□□P,　PDU040-NGB013T□□□P
PDU040-NGC013T□□□P-R,　PDU040-NGB013T□□□P-R
PDU040-NGC013T□□□P-S,　PDU040-NGB013T□□□P-S
 13 169.92 202 28 110 90
PDU040-GGC014T□□□P,　PDU040-GGB014T□□□P
PDU040-GGC014T□□□P-R,　PDU040-GGB014T□□□P-R
PDU040-GGC014T□□□P-S,　PDU040-GGB014T□□□P-S
PDU040-NGC014T□□□P,　PDU040-NGB014T□□□P
PDU040-NGC014T□□□P-R,　PDU040-NGB014T□□□P-R
PDU040-NGC014T□□□P-S,　PDU040-NGB014T□□□P-S
 14 182.65 216 28 120 100
PDU040-GGC015T□□□P,　PDU040-GGB015T□□□P
PDU040-GGC015T□□□P-R,　PDU040-GGB015T□□□P-R
PDU040-GGC015T□□□P-S,　PDU040-GGB015T□□□P-S
PDU040-NGC015T□□□P,　PDU040-NGB015T□□□P
PDU040-NGC015T□□□P-R,　PDU040-NGB015T□□□P-R
PDU040-NGC015T□□□P-S,　PDU040-NGB015T□□□P-S
 15 194.99 228 33 120 100
PDU040-GGC016T□□□P,　PDU040-GGB016T□□□P
PDU040-GGC016T□□□P-R,　PDU040-GGB016T□□□P-R
PDU040-GGC016T□□□P-S,　PDU040-GGB016T□□□P-S
PDU040-NGC016T□□□P,　PDU040-NGB016T□□□P
PDU040-NGC016T□□□P-R,　PDU040-NGB016T□□□P-R
PDU040-NGC016T□□□P-S,　PDU040-NGB016T□□□P-S
 16 207.72 240 33 120 100
PDU040-GGC024T□□□P,　PDU040-GGB024T□□□P
PDU040-GGC024T□□□P-R,　PDU040-GGB024T□□□P-R
PDU040-GGC024T□□□P-S,　PDU040-GGB024T□□□P-S
PDU040-NGC024T□□□P,　PDU040-NGB024T□□□P
PDU040-NGC024T□□□P-R,　PDU040-NGB024T□□□P-R
PDU040-NGC024T□□□P-S,　PDU040-NGB024T□□□P-S
 24 308.18 335 33 140 120
PDU050　 50 25.4 24
Model No. Number of teeth
NT		 Pitch circle dia.
ΦDa
mm		 Reference outer diameter
ΦDo
mm		 Shaft Bore Diameter
Φd
mm		 Hub
Plain Bore Diameter
ΦDH
mm		 Length
LH
mm
PDU050-GGC012T□□□P,　PDU050-GGB012T□□□P
PDU050-GGC012T□□□P-R,　PDU050-GGB012T□□□P-R
PDU050-GGC012T□□□P-S,　PDU050-GGB012T□□□P-S
PDU050-NGC012T□□□P,　PDU050-NGB012T□□□P
PDU050-NGC012T□□□P-R,　PDU050-NGB012T□□□P-R
PDU050-NGC012T□□□P-S,　PDU050-NGB012T□□□P-S
 12 196.59 237 33 110 100
PDU050-GGC013T□□□P,　PDU050-GGB013T□□□P
PDU050-GGC013T□□□P-R,　PDU050-GGB013T□□□P-R
PDU050-GGC013T□□□P-S,　PDU050-GGB013T□□□P-S
PDU050-NGC013T□□□P,　PDU050-NGB013T□□□P
PDU050-NGC013T□□□P-R,　PDU050-NGB013T□□□P-R
PDU050-NGC013T□□□P-S,　PDU050-NGB013T□□□P-S
 13 211.7 252 33 130 100
PDU050-GGC014T□□□P,　PDU050-GGB014T□□□P
PDU050-GGC014T□□□P-R,　PDU050-GGB014T□□□P-R
PDU050-GGC014T□□□P-S,　PDU050-GGB014T□□□P-S
PDU050-NGC014T□□□P,　PDU050-NGB014T□□□P
PDU050-NGC014T□□□P-R,　PDU050-NGB014T□□□P-R
PDU050-NGC014T□□□P-S,　PDU050-NGB014T□□□P-S
 14 227.62 269 33 130 110
PDU050-GGC015T□□□P,　PDU050-GGB015T□□□P
PDU050-GGC015T□□□P-R,　PDU050-GGB015T□□□P-R
PDU050-GGC015T□□□P-S,　PDU050-GGB015T□□□P-S
PDU050-NGC015T□□□P,　PDU050-NGB015T□□□P
PDU050-NGC015T□□□P-R,　PDU050-NGB015T□□□P-R
PDU050-NGC015T□□□P-S,　PDU050-NGB015T□□□P-S
 15 243.13 285 33 130 110
PDU050-GGC016T□□□P,　PDU050-GGB016T□□□P
PDU050-GGC016T□□□P-R,　PDU050-GGB016T□□□P-R
PDU050-GGC016T□□□P-S,　PDU050-GGB016T□□□P-S
PDU050-NGC016T□□□P,　PDU050-NGB016T□□□P
PDU050-NGC016T□□□P-R,　PDU050-NGB016T□□□P-R
PDU050-NGC016T□□□P-S,　PDU050-NGB016T□□□P-S
 16 259.05 299 33 140 120
PDU050-GGC024T□□□P,　PDU050-GGB024T□□□P
PDU050-GGC024T□□□P-R,　PDU050-GGB024T□□□P-R
PDU050-GGC024T□□□P-S,　PDU050-GGB024T□□□P-S
PDU050-NGC024T□□□P,　PDU050-NGB024T□□□P
PDU050-NGC024T□□□P-R,　PDU050-NGB024T□□□P-R
PDU050-NGC024T□□□P-S,　PDU050-NGB024T□□□P-S
 24 384.97 416 33 160 140
PDU055　 55 28.58 30
Model No. Number of teeth
NT		 Pitch circle dia.
ΦDa
mm		 Reference outer diameter
ΦDo
mm		 Shaft Bore Diameter
Φd
mm		 Hub
Plain Bore Diameter
ΦDH
mm		 Length
LH
mm
PDU055-GGC012T□□□P,　PDU055-GGB012T□□□P
PDU055-GGC012T□□□P-R,　PDU055-GGB012T□□□P-R
PDU055-GGC012T□□□P-S,　PDU055-GGB012T□□□P-S
PDU055-NGC012T□□□P,　PDU055-NGB012T□□□P
PDU055-NGC012T□□□P-R,　PDU055-NGB012T□□□P-R
PDU055-NGC012T□□□P-S,　PDU055-NGB012T□□□P-S
 12 216.08 261 33 135 140
PDU055-GGC013T□□□P,　PDU055-GGB013T□□□P
PDU055-GGC013T□□□P-R,　PDU055-GGB013T□□□P-R
PDU055-GGC013T□□□P-S,　PDU055-GGB013T□□□P-S
PDU055-NGC013T□□□P,　PDU055-NGB013T□□□P
PDU055-NGC013T□□□P-R,　PDU055-NGB013T□□□P-R
PDU055-NGC013T□□□P-S,　PDU055-NGB013T□□□P-S
 13 232.79 277 33 150 140
PDU055-GGC014T□□□P,　PDU055-GGB014T□□□P
PDU055-GGC014T□□□P-R,　PDU055-GGB014T□□□P-R
PDU055-GGC014T□□□P-S,　PDU055-GGB014T□□□P-S
PDU055-NGC014T□□□P,　PDU055-NGB014T□□□P
PDU055-NGC014T□□□P-R,　PDU055-NGB014T□□□P-R
PDU055-NGC014T□□□P-S,　PDU055-NGB014T□□□P-S
 14 250.30 296 33 160 140
PDU055-GGC015T□□□P,　PDU055-GGB015T□□□P
PDU055-GGC015T□□□P-R,　PDU055-GGB015T□□□P-R
PDU055-GGC015T□□□P-S,　PDU055-GGB015T□□□P-S
PDU055-NGC015T□□□P,　PDU055-NGB015T□□□P
PDU055-NGC015T□□□P-R,　PDU055-NGB015T□□□P-R
PDU055-NGC015T□□□P-S,　PDU055-NGB015T□□□P-S
 15 267.41 313 33 160 140
PDU055-GGC016T□□□P,　PDU055-GGB016T□□□P
PDU055-GGC016T□□□P-R,　PDU055-GGB016T□□□P-R
PDU055-GGC016T□□□P-S,　PDU055-GGB016T□□□P-S
PDU055-NGC016T□□□P,　PDU055-NGB016T□□□P
PDU055-NGC016T□□□P-R,　PDU055-NGB016T□□□P-R
PDU055-NGC016T□□□P-S,　PDU055-NGB016T□□□P-S
 16 284.91 329 33 170 150
PDU055-GGC024T□□□P,　PDU055-GGB024T□□□P
PDU055-GGC024T□□□P-R,　PDU055-GGB024T□□□P-R
PDU055-GGC024T□□□P-S,　PDU055-GGB024T□□□P-S
PDU055-NGC024T□□□P,　PDU055-NGB024T□□□P
PDU055-NGC024T□□□P-R,　PDU055-NGB024T□□□P-R
PDU055-NGC024T□□□P-S,　PDU055-NGB024T□□□P-S
 24 423.57 458 38 190 170
PDU070　 70 35.71 34
Model No. Number of teeth
NT		 Pitch circle dia.
ΦDa
mm		 Reference outer diameter
ΦDo
mm		 Shaft Bore Diameter
Φd
mm		 Hub
Plain Bore Diameter
ΦDH
mm		 Length
LH
mm
PDU070-GGC012T□□□P,　PDU070-GGB012T□□□P
PDU070-GGC012T□□□P-R,　PDU070-GGB012T□□□P-R
PDU070-GGC012T□□□P-S,　PDU070-GGB012T□□□P-S
PDU070-NGC012T□□□P,　PDU070-NGB012T□□□P
PDU070-NGC012T□□□P-R,　PDU070-NGB012T□□□P-R
PDU070-NGC012T□□□P-S,　PDU070-NGB012T□□□P-S
 12 273.98 331 43 170 160
PDU070-GGC013T□□□P,　PDU070-GGB013T□□□P
PDU070-GGC013T□□□P-R,　PDU070-GGB013T□□□P-R
PDU070-GGC013T□□□P-S,　PDU070-GGB013T□□□P-S
PDU070-NGC013T□□□P,　PDU070-NGB013T□□□P
PDU070-NGC013T□□□P-R,　PDU070-NGB013T□□□P-R
PDU070-NGC013T□□□P-S,　PDU070-NGB013T□□□P-S
 13 295.66 352 43 180 160
PDU070-GGC014T□□□P,　PDU070-GGB014T□□□P
PDU070-GGC014T□□□P-R,　PDU070-GGB014T□□□P-R
PDU070-GGC014T□□□P-S,　PDU070-GGB014T□□□P-S
PDU070-NGC014T□□□P,　PDU070-NGB014T□□□P
PDU070-NGC014T□□□P-R,　PDU070-NGB014T□□□P-R
PDU070-NGC014T□□□P-S,　PDU070-NGB014T□□□P-S
 14 317.94 376 43 180 160
PDU070-GGC015T□□□P,　PDU070-GGB015T□□□P
PDU070-GGC015T□□□P-R,　PDU070-GGB015T□□□P-R
PDU070-GGC015T□□□P-S,　PDU070-GGB015T□□□P-S
PDU070-NGC015T□□□P,　PDU070-NGB015T□□□P
PDU070-NGC015T□□□P-R,　PDU070-NGB015T□□□P-R
PDU070-NGC015T□□□P-S,　PDU070-NGB015T□□□P-S
 15 339.83 398 43 180 160
PDU070-GGC016T□□□P,　PDU070-GGB016T□□□P
PDU070-GGC016T□□□P-R,　PDU070-GGB016T□□□P-R
PDU070-GGC016T□□□P-S,　PDU070-GGB016T□□□P-S
PDU070-NGC016T□□□P,　PDU070-NGB016T□□□P
PDU070-NGC016T□□□P-R,　PDU070-NGB016T□□□P-R
PDU070-NGC016T□□□P-S,　PDU070-NGB016T□□□P-S
 16 362.11 418 43 190 160
PDU070-GGC024T□□□P,　PDU070-GGB024T□□□P
PDU070-GGC024T□□□P-R,　PDU070-GGB024T□□□P-R
PDU070-GGC024T□□□P-S,　PDU070-GGB024T□□□P-S
PDU070-NGC024T□□□P,　PDU070-NGB024T□□□P
PDU070-NGC024T□□□P-R,　PDU070-NGB024T□□□P-R
PDU070-NGC024T□□□P-S,　PDU070-NGB024T□□□P-S
 24 538.76 583 63 210 190
PDU080　 80 39.68 36
Model No. Number of teeth
NT		 Pitch circle dia.
ΦDa
mm		 Reference outer diameter
ΦDo
mm		 Shaft Bore Diameter
Φd
mm		 Hub
Plain Bore Diameter
ΦDH
mm		 Length
LH
mm
PDU080-GGC012T□□□P,　PDU080-GGB012T□□□P
PDU080-GGC012T□□□P-R,　PDU080-GGB012T□□□P-R
PDU080-GGC012T□□□P-S,　PDU080-GGB012T□□□P-S
PDU080-NGC012T□□□P,　PDU080-NGB012T□□□P
PDU080-NGC012T□□□P-R,　PDU080-NGB012T□□□P-R
PDU080-NGC012T□□□P-S,　PDU080-NGB012T□□□P-S
 12 312.78 378 43 190 160
PDU080-GGC013T□□□P,　PDU080-GGB013T□□□P
PDU080-GGC013T□□□P-R,　PDU080-GGB013T□□□P-R
PDU080-GGC013T□□□P-S,　PDU080-GGB013T□□□P-S
PDU080-NGC013T□□□P,　PDU080-NGB013T□□□P
PDU080-NGC013T□□□P-R,　PDU080-NGB013T□□□P-R
PDU080-NGC013T□□□P-S,　PDU080-NGB013T□□□P-S
 13 337.64 402 43 190 160
PDU080-GGC014T□□□P,　PDU080-GGB014T□□□P
PDU080-GGC014T□□□P-R,　PDU080-GGB014T□□□P-R
PDU080-GGC014T□□□P-S,　PDU080-GGB014T□□□P-S
PDU080-NGC014T□□□P,　PDU080-NGB014T□□□P
PDU080-NGC014T□□□P-R,　PDU080-NGB014T□□□P-R
PDU080-NGC014T□□□P-S,　PDU080-NGB014T□□□P-S
 14 363.11 430 43 200 180
PDU080-GGC015T□□□P,　PDU080-GGB015T□□□P
PDU080-GGC015T□□□P-R,　PDU080-GGB015T□□□P-R
PDU080-GGC015T□□□P-S,　PDU080-GGB015T□□□P-S
PDU080-NGC015T□□□P,　PDU080-NGB015T□□□P
PDU080-NGC015T□□□P-R,　PDU080-NGB015T□□□P-R
PDU080-NGC015T□□□P-S,　PDU080-NGB015T□□□P-S
 15 388.17 455 43 200 180
PDU080-GGC016T□□□P,　PDU080-GGB016T□□□P
PDU080-GGC016T□□□P-R,　PDU080-GGB016T□□□P-R
PDU080-GGC016T□□□P-S,　PDU080-GGB016T□□□P-S
PDU080-NGC016T□□□P,　PDU080-NGB016T□□□P
PDU080-NGC016T□□□P-R,　PDU080-NGB016T□□□P-R
PDU080-NGC016T□□□P-S,　PDU080-NGB016T□□□P-S
 16 413.64 478 43 210 200
PDU080-GGC024T□□□P,　PDU080-GGB024T□□□P
PDU080-GGC024T□□□P-R,　PDU080-GGB024T□□□P-R
PDU080-GGC024T□□□P-S,　PDU080-GGB024T□□□P-S
PDU080-NGC024T□□□P,　PDU080-NGB024T□□□P
PDU080-NGC024T□□□P-R,　PDU080-NGB024T□□□P-R
PDU080-NGC024T□□□P-S,　PDU080-NGB024T□□□P-S
 24 615.55 666 63 240 230
PDU090　 90 47.63 45
Model No. Number of teeth
NT		 Pitch circle dia.
ΦDa
mm		 Reference outer diameter
ΦDo
mm		 Shaft Bore Diameter
Φd
mm		 Hub
Plain Bore Diameter
ΦDH
mm		 Length
LH
mm
PDU090-GGC012T□□□P,　PDU090-GGB012T□□□P
PDU090-GGC012T□□□P-R,　PDU090-GGB012T□□□P-R
PDU090-GGC012T□□□P-S,　PDU090-GGB012T□□□P-S
PDU090-NGC012T□□□P,　PDU090-NGB012T□□□P
PDU090-NGC012T□□□P-R,　PDU090-NGB012T□□□P-R
PDU090-NGC012T□□□P-S,　PDU090-NGB012T□□□P-S
 12 352.77 425 43 220 190
PDU090-GGC013T□□□P,　PDU090-GGB013T□□□P
PDU090-GGC013T□□□P-R,　PDU090-GGB013T□□□P-R
PDU090-GGC013T□□□P-S,　PDU090-GGB013T□□□P-S
PDU090-NGC013T□□□P,　PDU090-NGB013T□□□P
PDU090-NGC013T□□□P-R,　PDU090-NGB013T□□□P-R
PDU090-NGC013T□□□P-S,　PDU090-NGB013T□□□P-S
 13 380.42 453 43 220 190
PDU090-GGC014T□□□P,　PDU090-GGB014T□□□P
PDU090-GGC014T□□□P-R,　PDU090-GGB014T□□□P-R
PDU090-GGC014T□□□P-S,　PDU090-GGB014T□□□P-S
PDU090-NGC014T□□□P,　PDU090-NGB014T□□□P
PDU090-NGC014T□□□P-R,　PDU090-NGB014T□□□P-R
PDU090-NGC014T□□□P-S,　PDU090-NGB014T□□□P-S
 14 409.07 484 43 230 210
PDU090-GGC015T□□□P,　PDU090-GGB015T□□□P
PDU090-GGC015T□□□P-R,　PDU090-GGB015T□□□P-R
PDU090-GGC015T□□□P-S,　PDU090-GGB015T□□□P-S
PDU090-NGC015T□□□P,　PDU090-NGB015T□□□P
PDU090-NGC015T□□□P-R,　PDU090-NGB015T□□□P-R
PDU090-NGC015T□□□P-S,　PDU090-NGB015T□□□P-S
 15 437.32 512 63 230 210
PDU090-GGC016T□□□P,　PDU090-GGB016T□□□P
PDU090-GGC016T□□□P-R,　PDU090-GGB016T□□□P-R
PDU090-GGC016T□□□P-S,　PDU090-GGB016T□□□P-S
PDU090-NGC016T□□□P,　PDU090-NGB016T□□□P
PDU090-NGC016T□□□P-R,　PDU090-NGB016T□□□P-R
PDU090-NGC016T□□□P-S,　PDU090-NGB016T□□□P-S
 16 465.97 538 63 240 230
PDU090-GGC024T□□□P,　PDU090-GGB024T□□□P
PDU090-GGC024T□□□P-R,　PDU090-GGB024T□□□P-R
PDU090-GGC024T□□□P-S,　PDU090-GGB024T□□□P-S
PDU090-NGC024T□□□P,　PDU090-NGB024T□□□P
PDU090-NGC024T□□□P-R,　PDU090-NGB024T□□□P-R
PDU090-NGC024T□□□P-S,　PDU090-NGB024T□□□P-S
 24 692.95 751 63 270 260
PDU120　 120 63.5 60
Model No. Number of teeth
NT		 Pitch circle dia.
ΦDa
mm		 Reference outer diameter
ΦDo
mm		 Shaft Bore Diameter
Φd
mm		 Hub
Plain Bore Diameter
ΦDH
mm		 Length
LH
mm
PDU120-GGC012T□□□P,　PDU120-GGB012T□□□P
PDU120-GGC012T□□□P-R,　PDU120-GGB012T□□□P-R
PDU120-NGC012T□□□P,　PDU120-NGB012T□□□P
PDU120-NGC012T□□□P-R,　PDU120-NGB012T□□□P-R
 12 472.37 569 63 260 240
PDU120-GGC013T□□□P,　PDU120-GGB013T□□□P
PDU120-GGC013T□□□P-R,　PDU120-GGB013T□□□P-R
PDU120-NGC013T□□□P,　PDU120-NGB013T□□□P
PDU120-NGC013T□□□P-R,　PDU120-NGB013T□□□P-R
 13 508.56 599 63 270 250
PDU120-GGC014T□□□P,　PDU120-GGB014T□□□P
PDU120-GGC014T□□□P-R,　PDU120-GGB014T□□□P-R
PDU120-NGC014T□□□P,　PDU120-NGB014T□□□P
PDU120-NGC014T□□□P-R,　PDU120-NGB014T□□□P-R
 14 546.76 650 63 270 250
PDU120-GGC015T□□□P,　PDU120-GGB015T□□□P
PDU120-GGC015T□□□P-R,　PDU120-GGB015T□□□P-R
PDU120-NGC015T□□□P,　PDU120-NGB015T□□□P
PDU120-NGC015T□□□P-R,　PDU120-NGB015T□□□P-R
 15 582.96 682 63 280 260
PDU120-GGC016T□□□P,　PDU120-GGB016T□□□P
PDU120-GGC016T□□□P-R,　PDU120-GGB016T□□□P-R
PDU120-NGC016T□□□P,　PDU120-NGB016T□□□P
PDU120-NGC016T□□□P-R,　PDU120-NGB016T□□□P-R
 16 621.15 717 63 280 260
PDU150　 150 79.38 75
Model No. Number of teeth
NT		 Pitch circle dia.
ΦDa
mm		 Reference outer diameter
ΦDo
mm		 Shaft Bore Diameter
Φd
mm		 Hub
Plain Bore Diameter
ΦDH
mm		 Length
LH
mm
PDU150-GGC012T□□□P,　PDU150-GGB012T□□□P
PDU150-NGC012T□□□P,　PDU150-NGB012T□□□P
 12 590.46 711 120 250 230
PDU150-GGC013T□□□P,　PDU150-GGB013T□□□P
PDU150-NGC013T□□□P,　PDU150-NGB013T□□□P
 13 635.7 749 120 260 250
PDU150-GGC014T□□□P,　PDU150-GGB014T□□□P
PDU150-NGC014T□□□P,　PDU150-NGB014T□□□P
 14 683.45 813 120 280 270
PDU150-GGC015T□□□P,　PDU150-GGB015T□□□P
PDU150-NGC015T□□□P,　PDU150-NGB015T□□□P
 15 728.7 853 120 290 290
PDU150-GGC016T□□□P,　PDU150-GGB016T□□□P
PDU150-NGC016T□□□P,　PDU150-NGB016T□□□P
 16 776.44 896 160 310 310
PDU180　 180 95.25 90
Model No. Number of teeth
NT		 Pitch circle dia.
ΦDa
mm		 Reference outer diameter
ΦDo
mm		 Shaft Bore Diameter
Φd
mm		 Hub
Plain Bore Diameter
ΦDH
mm		 Length
LH
mm
PDU180-GGC012T□□□P,　PDU180-GGB012T□□□P
PDU180-NGC012T□□□P,　PDU180-NGB012T□□□P
 12 708.55 853 120 310 280
PDU180-GGC013T□□□P,　PDU180-GGB013T□□□P
PDU180-NGC013T□□□P,　PDU180-NGB013T□□□P
 13 762.85 899 160 310 300
PDU180-GGC014T□□□P,　PDU180-GGB014T□□□P
PDU180-NGC014T□□□P,　PDU180-NGB014T□□□P
 14 820.14 975 160 360 320
PDU180-GGC015T□□□P,　PDU180-GGB015T□□□P
PDU180-NGC015T□□□P,　PDU180-NGB015T□□□P
 15 874.44 1023 160 360 340
PDU180-GGC016T□□□P,　PDU180-GGB016T□□□P
PDU180-NGC016T□□□P,　PDU180-NGB016T□□□P
 16 931.73 1075 160 370 370
PDU240　 240 127 120
Model No. Number of teeth
NT		 Pitch circle dia.
ΦDa
mm		 Reference outer diameter
ΦDo
mm		 Shaft Bore Diameter
Φd
mm		 Hub
Plain Bore Diameter
ΦDH
mm		 Length
LH
mm
PDU240-GGC012T□□□P,　PDU240-GGB012T□□□P
PDU240-NGC012T□□□P,　PDU240-NGB012T□□□P
 12 944.73 1137 160 460 370
PDU240-GGC013T□□□P,　PDU240-GGB013T□□□P
PDU240-NGC013T□□□P,　PDU240-NGB013T□□□P
 13 1017.13 1233 160 460 400
PDU240-GGC014T□□□P,　PDU240-GGB014T□□□P
PDU240-NGC014T□□□P,　PDU240-NGB014T□□□P
 14 1093.52 1300 160 460 400
PDU240-GGC015T□□□P,　PDU240-GGB015T□□□P
PDU240-NGC015T□□□P,　PDU240-NGB015T□□□P
 15 1165.92 1364 160 460 400
PDU240-GGC016T□□□P,　PDU240-GGB016T□□□P
PDU240-NGC016T□□□P,　PDU240-NGB016T□□□P
 16 1242.31 1433 160 490 400
