Pin rack - Model and Package

Note )
1.The standard length is the length easiest to handle, and the number of pins used for that length has also been set as standard. In addition, the minimum length and number of pins available has also been set.
2.If the number of pins exceeds the standard number, then pin racks will be comprised of a standard number of pins and a number of pins fewer than the standard length (more than the minimum number of pins).
3.No mounting bolts provided.
Model No. examples
PDU050 | - | S | P | A | 080P | - | R |
| Frame number |
| | |
| Pin rack |
| | |
| No. of pins |
| Specification No symbol :Standard series (Steel) K:Electroless nickel plated series (Steel) R:Advanced rust protection series (Steel) Y:Flexible Type S:Standard series (Stainless steel) |
||
| Drive Method S:Linear drive |
| Mounting type F:Flat type A:Angle type |
||||||
Flat Type Specifications
Frame number | Pitch P mm |
Standard Length L mm |
Standard number of pins NT |
Thickness: t mm |
Pin position A mm |
Inner width W mm |
Total width Lw mm |
Height 2H mm |
Bolt bore diameter Φdm |
Mounting bolt size |
Mass of standard length kg |
Minimum length mm |
Minimum number of pins | DXF data 3D CAD data |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PDU020 | 20 | 800 | 40 | 4.5 (S:5) |
10 | 12 | 21 (S:22) |
22 | 4.5 | M4 | 1.4 (S:1.5) |
160 | 8 | DXF・3DCAD |
PDU022 | 22 | 792 | 36 | 4.5 (S:5) |
11 | 16 | 25 (S:26) |
25 | 4.5 | M4 | 1.7 (S:1.9) |
286 | 13 | DXF・3DCAD |
PDU030 | 30 | 780 | 26 | 6 | 15 | 19 | 31 | 32 | 6.5 | M6 | 2.8 (S:2.8) |
300 | 10 | DXF・3DCAD |
PDU035 | 35 | 770 | 22 | 9 (S:6) |
17.5 | 22 | 40 (S:34) |
38 | 8.8 | M8 | 4.7 (S:3.4) |
280 | 8 | DXF・3DCAD |
PDU040 | 40 | 800 | 20 | 9 (S:8) |
20 | 28 | 46 (S:44) |
45 | 10.8 | M10 | 6 (S:5.5) |
280 | 7 | DXF・3DCAD |
PDU050 | 50 | 1000 | 20 | 12 (S:9) |
25 | 28 | 52 (S:46) |
65 | 12.8 | M12 | 13.2 (S:10.3) |
300 | 6 | DXF・3DCAD |
PDU055 | 55 | 990 | 18 | 12 (S:9) |
27.5 | 36 | 60 (S:54) |
65 | 12.8 | M12 | 14 (S:11.2) |
495 | 9 | DXF・3DCAD |
PDU070 | 70 | 980 | 14 | 16 (S:10) |
35 | 40 | 72 (S:60) |
75 | 17 | M16 | 20.6 (S:14.3) |
420 | 6 | DXF・3DCAD |
PDU080 | 80 | 960 | 12 | 16 (S:12) |
40 | 42 | 74 (S:66) |
90 | 17 | M16 | 24.6 (S:19.6) |
560 | 7 | DXF・3DCAD |
PDU090 | 90 | 990 | 11 | 19 (S:12) |
45 | 52 | 90 (S:76) |
100 | 22 | M20 | 33.9 (S:24) |
540 | 6 | DXF・3DCAD |
PDU120 | 120 | 960 | 8 | 22 | 60 | 68 | 112 | 150 | 32 | M30 | 56.6 | 480 | 4 | DXF・3DCAD |
PDU150 | 150 | 1200 | 8 | 22 | 75 | 94 | 138 | 150 | 39 | M36 | 82.5 | 900 | 6 | DXF・3DCAD |
PDU180 | 180 | 1260 | 7 | 30 | 90 | 112 | 172 | 200 | 45 | M42 | 148.6 | 1080 | 6 | DXF・3DCAD |
PDU240 | 240 | 1200 | 5 | 38 | 120 | 150 | 226 | 250 | 52 | M48 | 235.6 | 1200 | 5 | DXF・3DCAD |
*"S" in the table shows dimensions and mass of the stainless steel type.
※Stainless steel types with frame nos. PDU070 or higher are available only in flat type.
*Frame nos. PDU120 or higher are available only with steel types.
Angled Type Specifications
Frame number | Pitch P mm |
Standard Length L mm |
Standard number of pins NT |
Inner width W mm |
Total width Lw mm |
Angle foot width D mm |
Center Height | Mounting hole position E mm |
End Width B mm |
Mounting hole pitch Pb mm |
Distance between mounting holes Pb X (nc-1) mm |
No. of mounting holes (on one side) nc |
Mounting hole diameter Φdb mm |
Mounting bolt size |
Mass of standard length kg |
Minimum length mm |
Minimum number of pins | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
H mm |
K mm |
|||||||||||||||||
PDU020 | 20 | 800 | 40 | 12 | 72 | 30 | 20 | 10 | 56 | 20 | 120 | 720 | 7 | 9 | M8 | 2.4 (S:2.4) |
160 | 8 |
PDU022 | 22 | 792 | 36 | 16 | 96 | 40 | 27 | 13 | 60 | 22 | 88 | 704 | 9 | 11 | M10 | 3.3 (S:3.3) |
132 | 6 |
PDU030 | 30 | 780 | 26 | 19 | 119 | 50 | 28 | 22 | 69 | 30 | 120 | 720 | 7 | 13.5 | M12 | 7.5 (S:7.5) |
180 | 6 |
PDU035 | 35 | 770 | 22 | 22 | 122 | 50 | 30 | 20 | 76 | 35 | 140 | 700 | 6 | 13.5 | M12 | 7.7 (S:7.5) |
210 | 6 |
PDU040 | 40 | 800 | 20 | 28 | 128 | 50 | 28 | 22 | 88 | 40 | 120 | 720 | 7 | 13.5 | M12 | 8.6 (S:8.5) |
320 | 8 |
PDU050 | 50 | 1000 | 20 | 28 | 158 | 65 | 40 | 25 | 104 | 50 | 150 | 900 | 7 | 17.5 | M16 | 17.2 (S:13.8) |
250 | 5 |
PDU055 | 55 | 990 | 18 | 36 | 166 | 65 | 37 | 28 | 112 | 55 | 165 | 825 | 6 | 17.5 | M16 | 18 (S:14.8) |
440 | 8 |
PDU070 | 70 | 980 | 14 | 40 | 190 | 75 | 43 | 32 | 130 | 70 | 210 | 840 | 5 | 17.5 | M16 | 29 | 560 | 8 |
PDU080 | 80 | 960 | 12 | 42 | 222 | 90 | 55 | 35 | 142 | 80 | 160 | 800 | 6 | 22 | M20 | 37 | 480 | 6 |
PDU090 | 90 | 990 | 11 | 52 | 252 | 100 | 55 | 45 | 162 | 90 | 180 | 720 | 5 | 22 | M20 | 44.6 | 540 | 6 |
PDU120 | 120 | 960 | 8 | 68 | 368 | 150 | 85 | 65 | 232 | 120 | 240 | 720 | 4 | 33 | M30 | 91 | 480 | 4 |
PDU150 | 150 | 1200 | 8 | 94 | 394 | 150 | 85 | 65 | 270 | 150 | 300 | 900 | 4 | 39 | M36 | 134 | 900 | 6 |
PDU180 | 180 | 1260 | 7 | 112 | 462 | 175 | 125 | 95 | Contact a Tsubaki representative for more information. | M42 | 233 | 1260 | 7 | |||||
PDU240 | 240 | 1200 | 5 | 150 | 554 | 202 | 157 | 119 | M48 | 362 | 1200 | 5 |
*"S" in the table shows dimensions and mass of the stainless steel type.
※Stainless steel types with frame nos. PDU070 or higher are available only in flat type.
*Frame nos. PDU120 or higher are available only with steel types.
Pin Gear for Linear Drives Model Type and Specification

Model No. examples
PDU050 | - | S | G | B | 014T | - | R |
| Frame number |
| | |
| Pin gear |
| | |
| Number of teeth |
| Specification No symbol :Standard series (Steel) K:Electroless nickel plated series (Steel) R:Advanced rust protection series (Steel) Y:Flexible Type S:Standard series (Stainless steel) |
||
| Drive Method S:Linear drive |

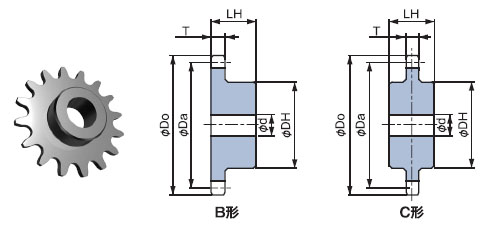

| Pin gear style B:Single hub C:Dual hub |
||||||
Manufacturing specifications
Steel type | Stainless steel type | |
---|---|---|
Material | Carbon steel for machine structural use | Stainless Steel |
Construction | B type / C type | |
Hardened Teeth | Induction hardened and tempered | None |
Pin gear applicable no. of teeth range
Number of teeth NT |
Linear rack | Outer Drive Pin Wheel | Inner Drive Pin Wheel | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
60 | 70 | 80 | 100 | 150 | 200 | 250 | 300 | 60 | 70 | 80 | 100 | 150 | 200 | 250 | ||
11 | × | × | × | × | × | × | × | × | × | ○ | ○ | ○ | ○ | × | × | × |
12 | △ | × | × | × | × | × | × | × | × | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
13 | ○ | × | × | × | × | × | △ | △ | △ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
14 | ○ | × | × | △ | △ | △ | △ | △ | △ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
15 | ○ | △ | △ | △ | △ | △ | △ | △ | △ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
16 | ○ | △ | △ | △ | △ | △ | △ | △ | △ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
17 | ○ | △ | △ | △ | △ | △ | △ | △ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
18 | ○ | △ | △ | △ | △ | △ | △ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
19 | ○ | △ | △ | △ | △ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
20 | ○ | △ | △ | △ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
21 | ○ | △ | △ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
22 | ○ | △ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
23 | ○ | △ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
More than 24 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
Pin Gear Specifications for Linear Drive
