Curved Lambda chain Major Specifications
RS60-LMCCU-1
[Click to enlarge ]
| ※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
| ※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals
Major Specifications
| Size & Specification & No. of strands | Min. tensile strength kN {kgf} |
Max. allowable load kN {kgf} |
Estimated Mass kg/m |
No. of links per unit |
Min. lateral bending radius r |
Operating temperature range |
|---|---|---|---|---|---|---|
| RS60-LMCCU-1 | 25.1{2560} | 4.02{410} | 1.40 | 160 | 600 | -10℃～150℃ |
Notes
1.Made to order

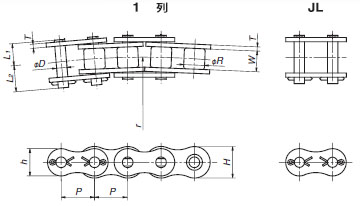

Principal dimensions mm
| Pitch P |
Roller dia. R |
Inner link inner width W |
Plate | Pin | ||||
|---|---|---|---|---|---|---|---|---|
| T | H | h | D | L1 | L2 | |||
| 19.05 | 11.91 | 12.70 | 2.4 | 18.1 | 15.6 | 5.35 | 12.95 | 14.55 |
Applicable connecting link
| Type | Connecting link |
|---|---|
| Model No. | RS60-LMCCU-1-MWJL |
| Standard Price | Contact us for details. |
| Delivery | Contact us for details. |
Notes for use
1.Operating Temperature: -10℃ to 150℃
2.RS type sprockets can be used.
3.Attachment chain can be manufactured.
4.Installation: Guide installation

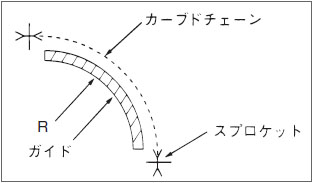

While curved chain has more installation freedom that RS Roller Chain, a guide must be installed to ensure that the chain engages the sprocket straight.
