RS roller chain BS/DIN standard 　Major Specifications

RF06B-LM-2


[Click to enlarge ]
PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

Catalogs ・Instruction Manuals

Major Specifications

Size & Specification & No. of strands JIS no. No. of
strands 		Min. tensile strength
kN {kgf}		 Estimated Mass
kg/m		 No. of links
per unit 		Allowable speed
m/min		 Operating
temperature
range
RF06B-LM-2 06B 2 16.9{1720} 0.75 320 160 -10℃～150℃

Notes
　1.Minimum tensile strength of attachment chain differs from the above. Contact us.
　2.Made to order

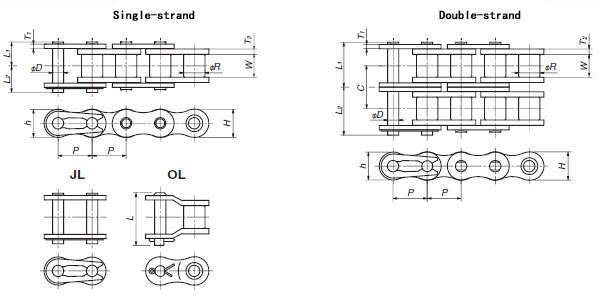

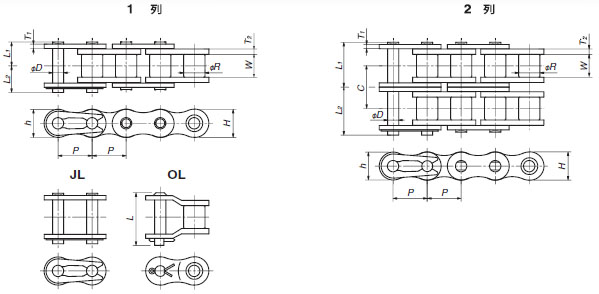

Principal dimensions 　mm

Pitch
P		 Roller dia.
R		 Inner link inner width
W		 Plate Pin Transverse pitch
C
mm
T1 T2 H h D L1 L2 L
9.525 6.35 5.72 1.0 1.3 8.2 8.2 3.28 11.2 12.8 25.9 10.24

Notes
　1.Plate configuration is flat type.
　2.The middle plate number is 1.
　3.Cotter pins are used for offset links.


Applicable connecting link

Type Connecting link Offset link
Model No. RF06B-LM-2-MCJLRF06B-LM-2-OL
Standard Price Contact us for details. Contact us for details.
Delivery Contact us for details. Contact us for details.

Notes for use

　1.Operating Temperature: -10℃ to 150℃
　2.スプロケット：BSローラチェーン(ISO規格Bシリーズ)用をご使用ください。
　3.互換性について：標準BS/DIN規格RSローラチェーンと互換性がありますが、伝動能力や許容速度が異なりますのでご注意ください。


Transmission Capacity Table 　kW　1.7 multiplied multi-strand coefficient

Small
sprocket
no. of teeth
Small sprocket RPM 　r/min
50 100 300 500 700 900 1200 1500 1800
9 0.10 0.19 0.53 0.83 1.12 1.41 1.82 2.23 2.64
10 0.12 0.22 0.60 0.94 1.26 1.58 2.04 2.50
11 0.14 0.24 0.65 1.04 1.39 1.75 2.26 2.77
12 0.14 0.27 0.71 1.14 1.53 1.92 2.50
13 0.15 0.29 0.78 1.24 1.67 2.09 2.72
14 0.17 0.31 0.85 1.34 1.82 2.28
15 0.19 0.34 0.92 1.45 1.96 2.45
16 0.19 0.36 0.97 1.55 2.09 2.62
17 0.20 0.39 1.04 1.65 2.23 2.81
18 0.22 0.41 1.11 1.75 2.38 2.98
19 0.24 0.44 1.17 1.85 2.52
20 0.26 0.46 1.24 1.97 2.67
21 0.26 0.49 1.31 2.07 2.81
22 0.27 0.51 1.38 2.18 2.96
23 0.29 0.54 1.45 2.30 3.09
24 0.31 0.56 1.51 2.40
25 0.32 0.60 1.58 2.50
26 0.32 0.61 1.65 2.62

Notes
　1.kW ratings when using a 1-pitch offset link (OL) are 80% of the above.
　2.The kW rating table is different from that of RS Roller Chain.
