Cable carrier Steel series TKV Series  Major Specifications

TKV(TKV130)

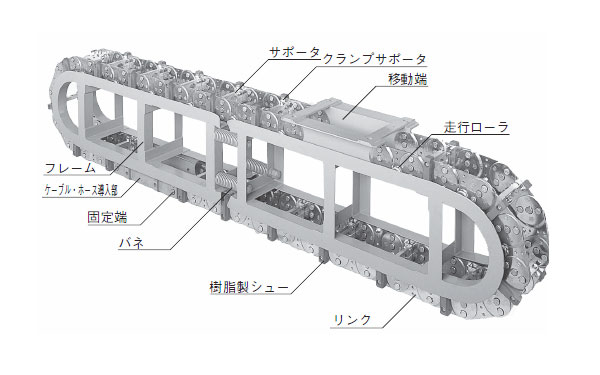

Construction


[Click to enlarge ]
PDF Outline Drawing

Contact us for details.

CAD data in DXF format

Contact us for details.
(Click here for a list of all DXF files )

Catalogs ・Instruction Manuals

Basic Package

Can be used for high speed/high frequency.

Link pitch mm 130
Maximum travel length m 30
Cable/hose maximum outer diameter mm 60
Cable/hose maximum mass kg/m 50
Maximum travel speed m/min 150
Operating Temperature Range -10ﾟC～80ﾟC
Main Body Material steel
Stay material Aluminum

Notes
　1.Discussions with a Tsubaki representative are necessary to select and order to TKV Series. Contact a Tsubaki representative for further information.
　2.In TKV Series, a lightweight type (TKV095) is also available in addition to TKV130.

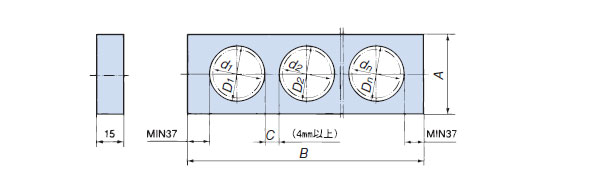

Stay dimensions


[Click to enlarge ]

Units : mm
Cable/hose
Maximum outer diameter
d		 Stay height
A
Φ46 65
Φ55 75
Φ60 90
Units : mm
Bending radius 　R Stay width 　B
150 200 250 300 350 400
200 ○ ○ ○ ○ ○ ○
250 - ○ ○ ○ ○ ○
300 - - ○ ○ ○ ○
400 - - - ○ ○ ○

Notes
　1.B dimension can also be manufactured at 400 and greater. Consult a Tsubaki representative for further information.
　2.The stay width and height are manufactured at the ordered dimensions.

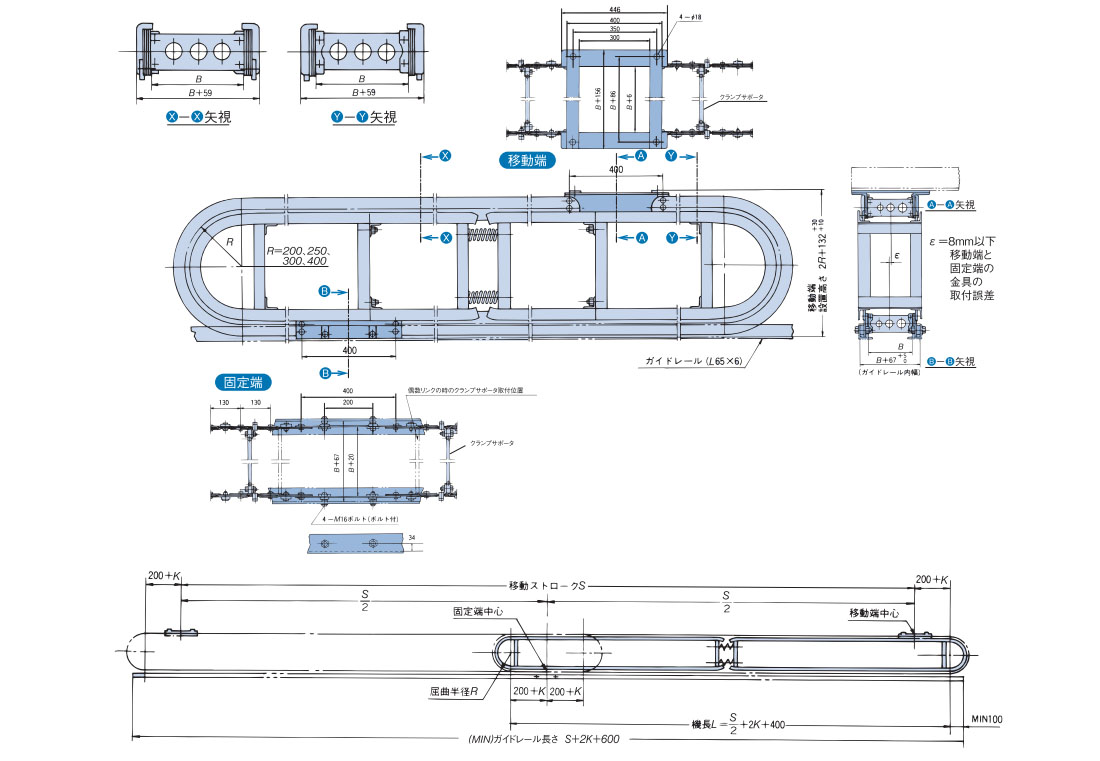

Dimension drawings


[Click to enlarge ]

Notes
　※Parts manufactured by Tsubaki: Frames, links, stays (connecting plates)
　・The standard coating color is Munsell 2.5B6/2.
　・The stay on the moving end and fixed end both fasten the cables/hoses as clamp stays. Notify a Tsubaki representative of the actual outer diameter of cables/hoses.
　※Parts fabricated by the customer: Guide channels, connecting element for moving end bracket, terminal box
