Cable carrier Plastic Series 3D TKRB Series Major Specifications
TKRB14H10
Construction
[Click to enlarge ]

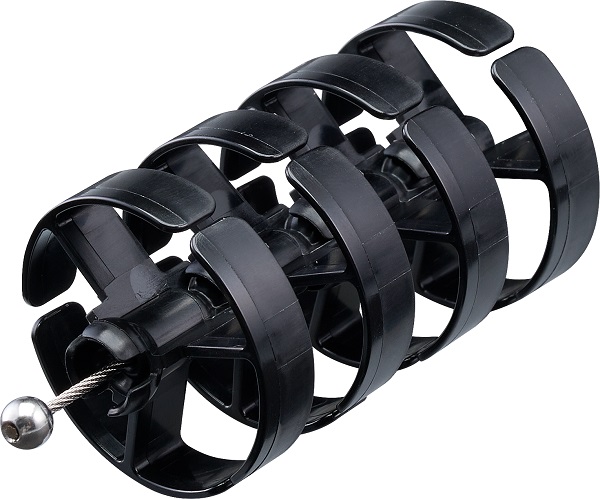

Links
TKRB Series (ROBOTRAX) has a link structure.
The links are snap-on connection each other with a ball shape at one end and a ball receptacle at the other end. Stoppers set in the links ensure a minimum bending radius in three dimensions. The links themselves can also be rotated.
[Click to enlarge ]

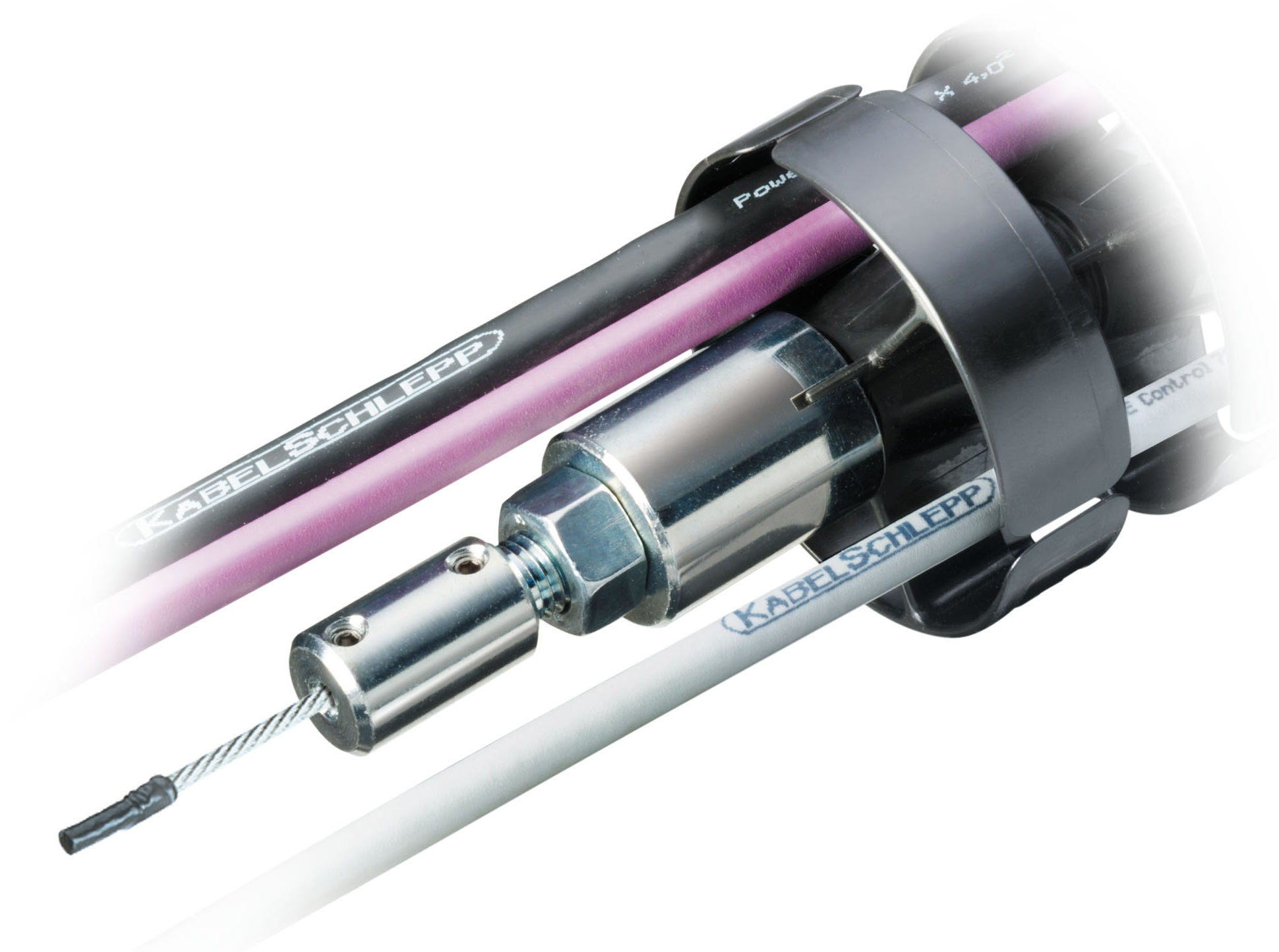

Ball-end stainless steel wire and clamping piece
When the robot arm moves quickly, high tension is applied to the cable carrier due to the acceleration. To accommodate this tension, a stainless steel wire is threaded through the hole in the center of link. The clamping piece is attached to one side of the ball-end stainless steel wire to adjust the wire tension. The opposite end from the clamping piece is a stainless steel ball-end structure.
[Click to enlarge ]

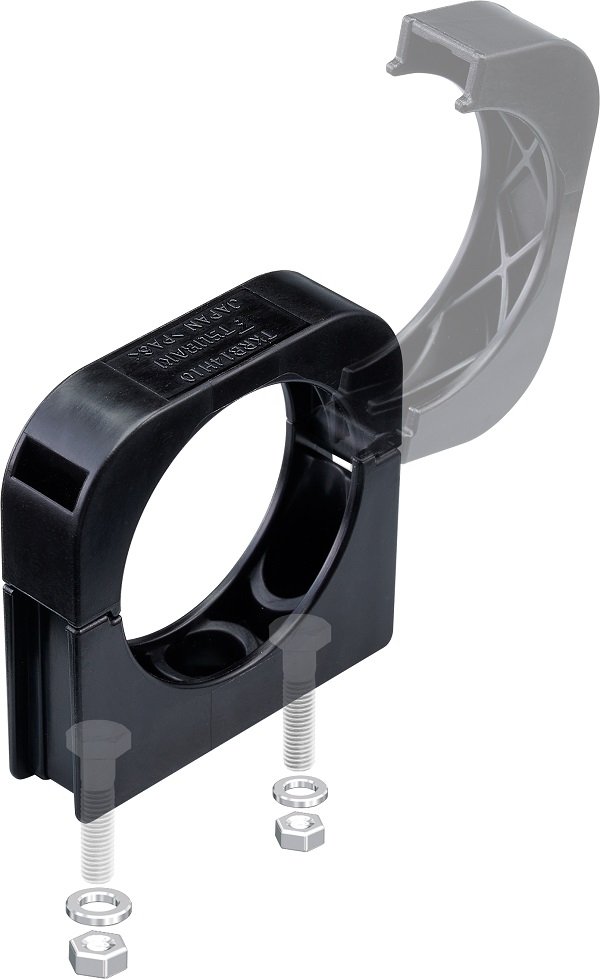

Quick release bracket
The brackets for attaching TKRB series (ROBOTRAX) to devices (e.g. robot arms) can be opened and closed by a snap mechanism and are attached to device with two bolts. The brackets can be attached to links in any position and are suitable for complex movements.
[Click to enlarge ]
Quick opening structure
It can be opened and closed by a snap mechanism.
[Click to enlarge ]
Bracket Holder that can be fixed to curved surface
The bracket can be attached to curved robot arms.
Easy to remove with surface fastener.
※Hose bands can also be used. Consult us separately.
PDF Outline Drawing
Contact us for details.
DXF drawings / 3D CAD data
Please re-set the number of links etc. on the linked screen.
| ※ | The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co. |
| ※ | Please direct your inquiries regarding the CAD data service or PARTcommunity to: CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032 |
Catalogs ・Instruction Manuals
Basic Package
| Size | TKRB14H10 |
|---|---|
| Outer diameter of applicable cable/hose mm | 2～7 |
| Bending radius mm | 40 |
| Allowable rotation angle (per 1 m) | ±670° |
| Da mm | 31 |
| hi mm | 10 |
| t（Pitch ） mm | 14.5 |
Accessories

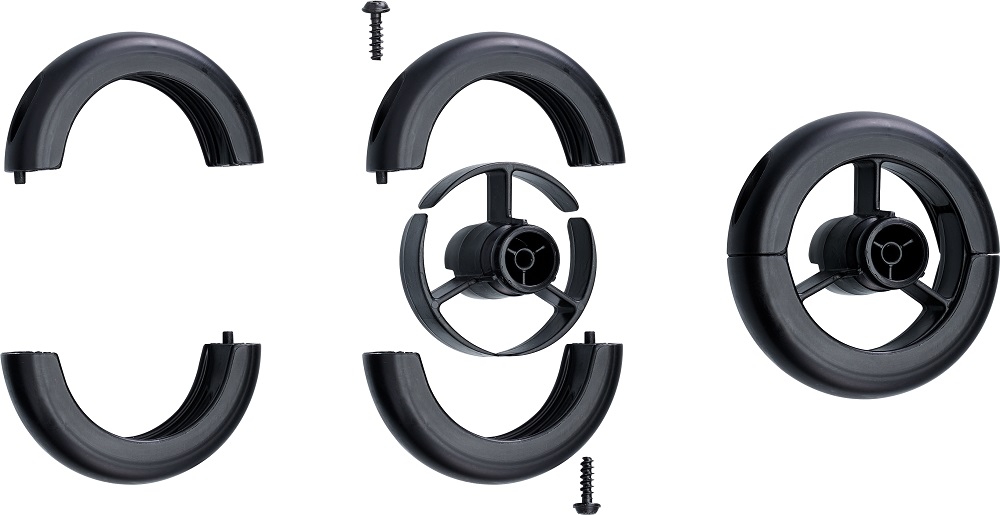

Protector
TKRB series (ROBOTRAX) base chain may come into contact with the device as robot moves.
Protectors can be used to protect TKRB series (ROBOTRAX) base chain from strong impacts and to regulate bending radius.
Order is in set (1 set = 5 pcs).
| Model No. | Material | Mass g/each | Price | Delivery | DXF drawings / 3D CAD data |
|---|---|---|---|---|---|
| TKRB14H10-PT | Engineering plastic | 4.5 | Contact us for details. | Contact us for details. | DXF・3DCAD |

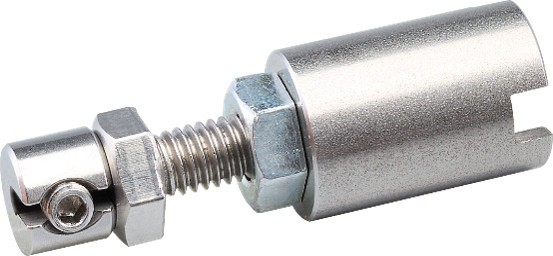

Tension piece
Stainless steel wire tension can be quickly and easily adjusted using clamping piece. Re-adjustment is also easy.
| Model No. | Material | Mass g/each | Price | Delivery |
|---|---|---|---|---|
| Contact us for details. | Stainless | 7.2 | Contact us for details. | Contact us for details. |
Guide bracket
Prevents contacts between cable carrier base chain and equipment, and prevents system failure.
・TKRB series moves in the guide bracket. Installation is simple.
・Can be opened and closed quickly and easily when inserting cables, etc.
| Model No. | Material | Mass g/each | Price | Delivery | DXF drawings / 3D CAD data |
|---|---|---|---|---|---|
| TKRB14H10-GH | Engineering plastic | 60 | Contact us for details. | Contact us for details. | DXF・3DCAD |

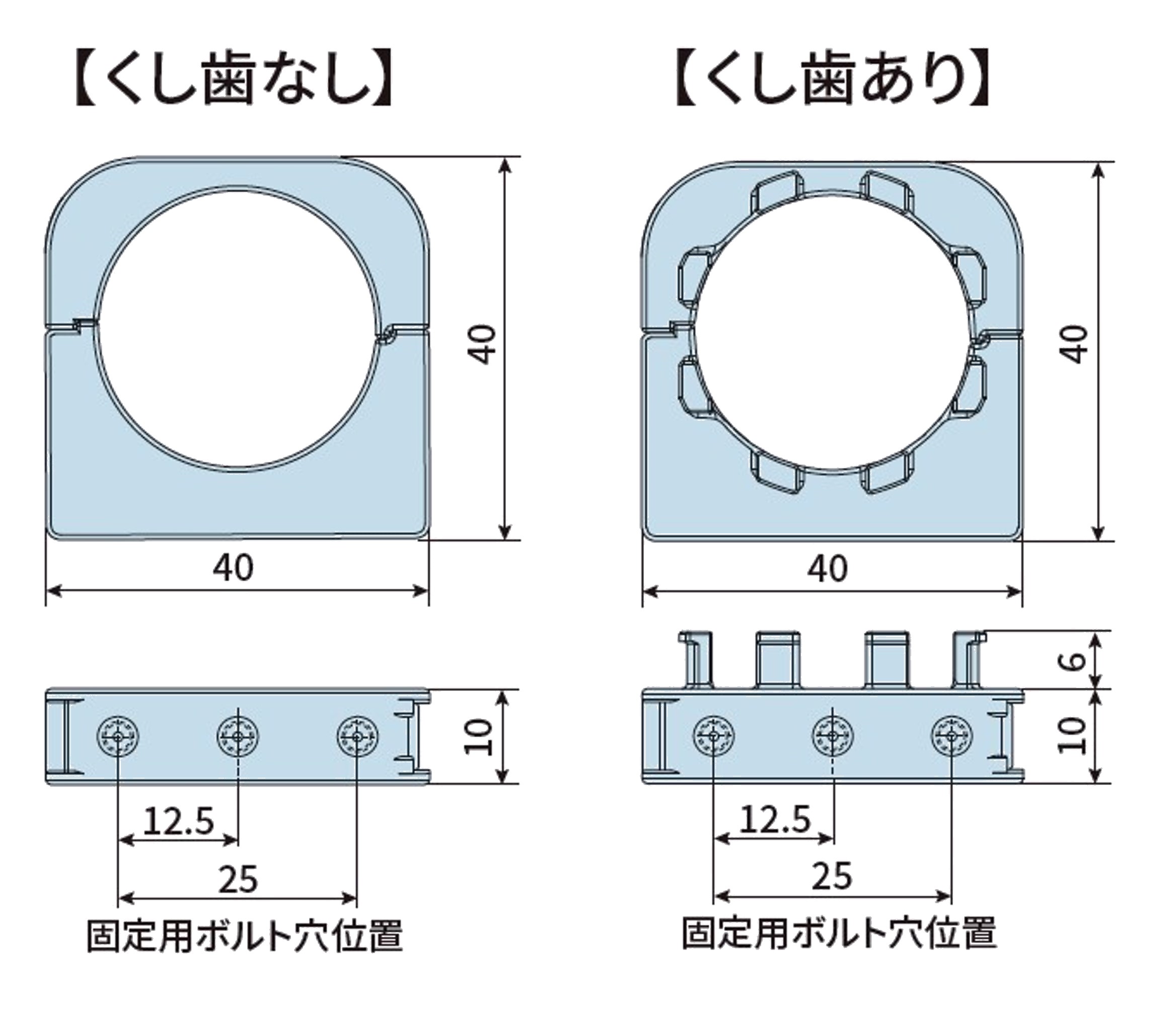

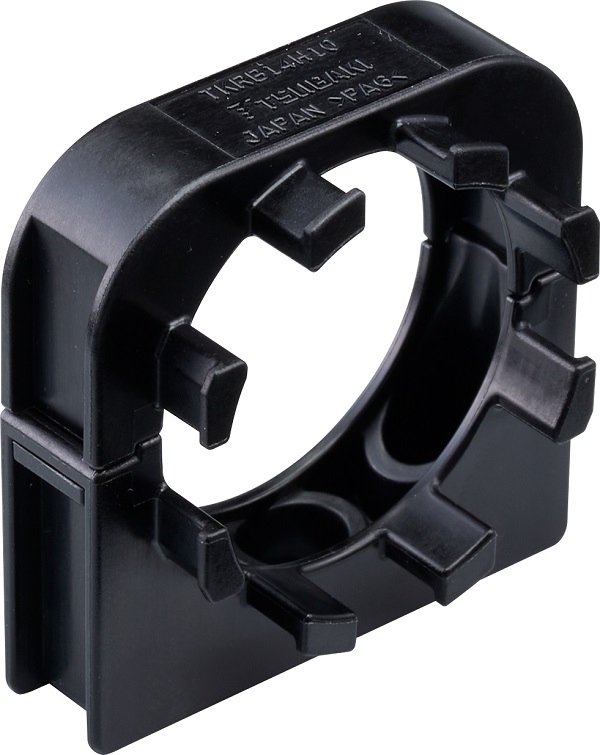

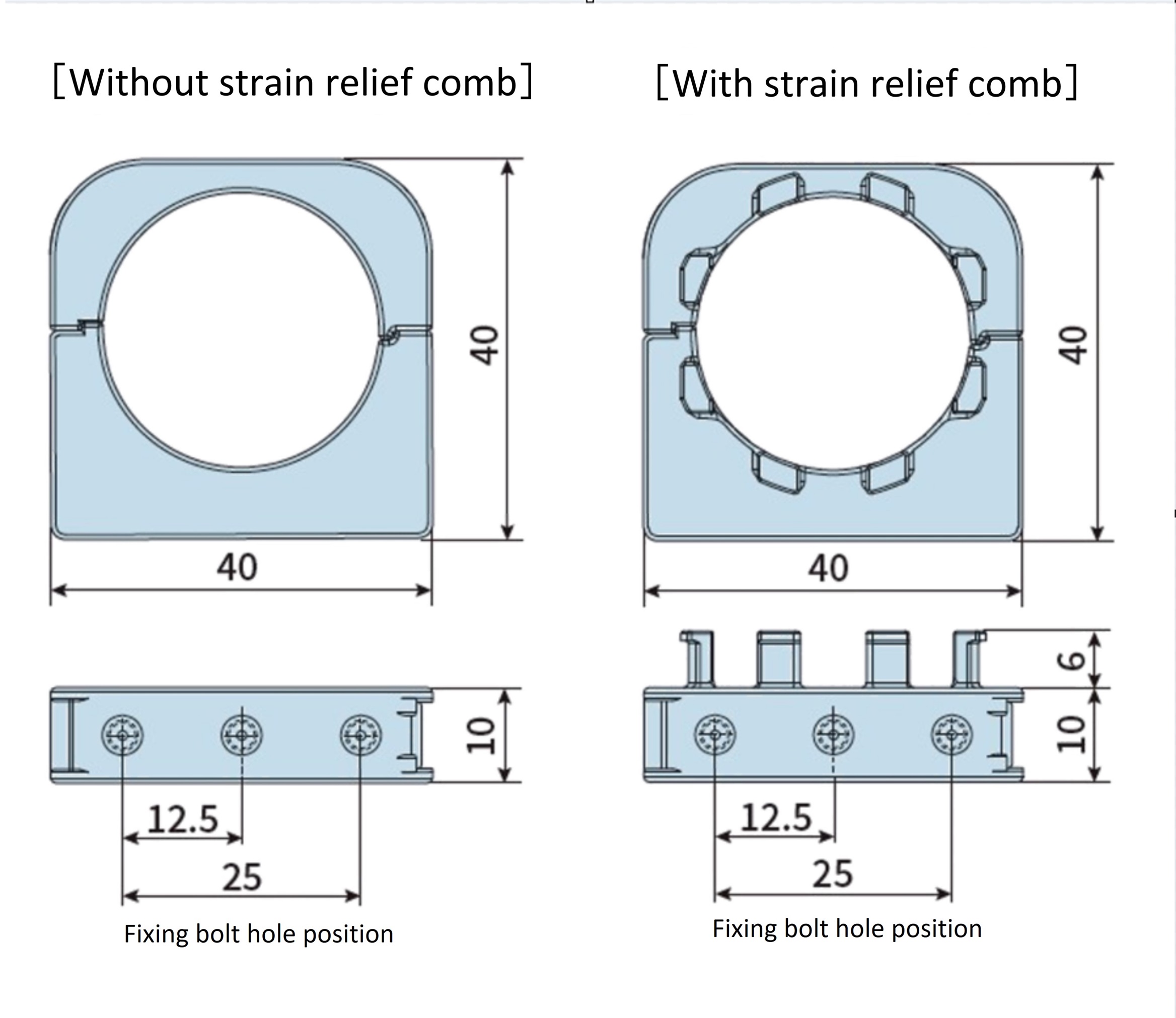

Bracket
[Click to enlarge ]
TKRB series can be easily fixed to the equipment.
Supports the sagging of TKRB series middle part and ensures the stability of path.
| Model No. | Type | Material | Mass g/each | Price | Delivery | DXF drawings / 3D CAD data |
|---|---|---|---|---|---|---|
| TKRB14H10-QMB | Without strain relief | Engineering plastic | 6.7 | Contact us for details. | Contact us for details. | DXF・3DCAD |
| TKRB14H10-QMBCL | With strain relief | Engineering plastic | 6.0 | Contact us for details. | Contact us for details. | DXF・3DCAD |
Fixing bolts to the device are not included. Please prepare hexagon socket head bolts of nominal diameter M4 by the customer.
Note ) Mounting distance of the bracket to the link should be within 800 mm.

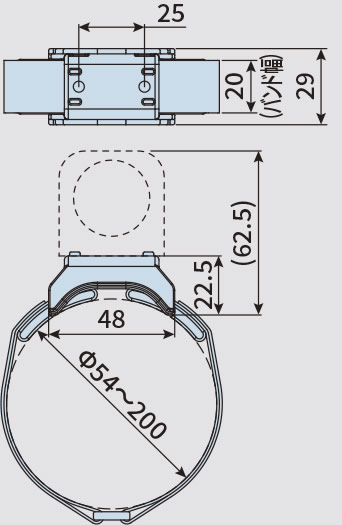

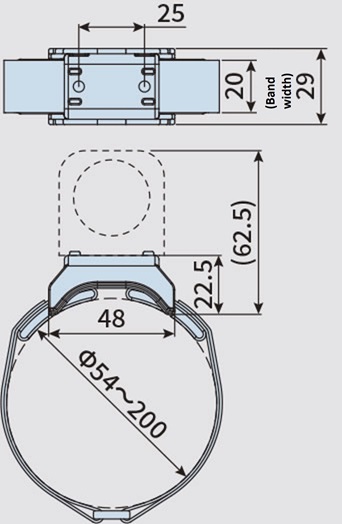

Bracket Holder
[Click to enlarge ]
Easy to attach with surface fastener.
| Model No. | Material | Mass g/each | Price | Delivery | DXF drawings / 3D CAD data |
|---|---|---|---|---|---|
| TKRB14H10-BH | Engineering plastic | 27.5 | Contact us for details. | Contact us for details. | DXF・3DCAD |
Can be attached on robot arms from Φ54 to 200 mm.
※Hose bands can also be used. Consult us separately.
