Cable carrier Steel series TKI Series  Major Specifications

TKI

Construction


[Click to enlarge ]
PDF Outline Drawing

Contact us for details.

CAD data in DXF format

Contact us for details.
(Click here for a list of all DXF files )

Catalogs ・Instruction Manuals

Basic Package

Suitable for high frequency/long travel length application.

Maximum travel length m 100
Cable/hose maximum outer diameter mm 80
Cable/hose maximum mass kg/m 100
Maximum travel speed m/min 120
Operating Temperature Range -10ﾟC～150ﾟC
Main Body Material steel
Stay material Aluminum

Notes
　1.Discussions with a Tsubaki representative are necessary to select and order to TKV Series. Contact a Tsubaki representative for further information.

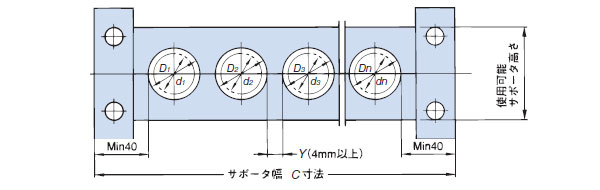

Stay dimensions


[Click to enlarge ]

Relationship between standard stay height and cable/hose outer diameter 　　Units : mm
Stay height Stay maximum bore diameter Cable/hose
Maximum outer diameter
65 50 46
75 60 55
90 66 60
110 88 80
Relationship between standard stay width (C) and bending radius (R) 　　Units : mm
Bending radius 　R Stay height Standard stay width (50mm increments) 　C
175 65～110 100～500
200 100～600
250 150～700
300 150～900
350 200～1000
400 200～1200
500 250～1500

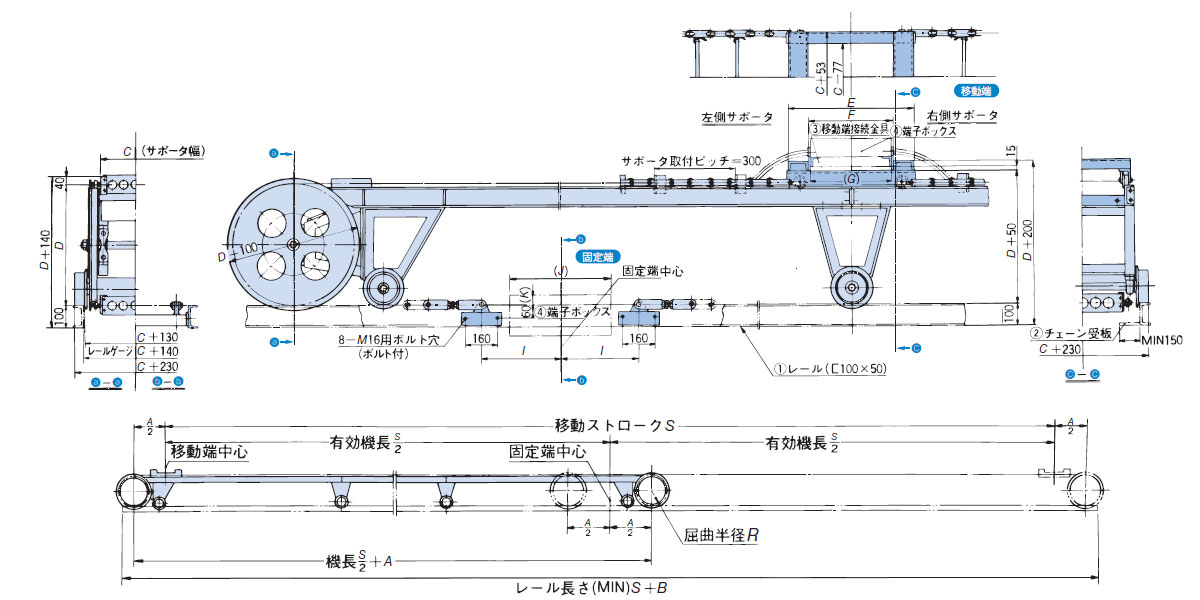

Dimension drawings


[Click to enlarge ]

Notes
　・The standard coating color is Munsell 2.5B6/2.
　・The stay on the moving end and fixed end both fasten the cables/hoses as clamp stays. Notify a Tsubaki representative of the actual outer diameter of cables/hoses.
　※Parts fabricated by the customer: (1) Rails, (2) Chain support channel, (3) Connecting element for moving end bracket, (4) Terminal box

Units : mm
Bending radius 　R Drum diameter D 　D A B E F (G) I (J) (K)
175 350 1800 2000 620 420 MAX
410		 390 MAX
500		 MAX
40
200 400
250 500
300 600
350 700
400 800 2000 2500 820 620 MAX
610		 440 MAX
600		 MAX
60
500 1000
