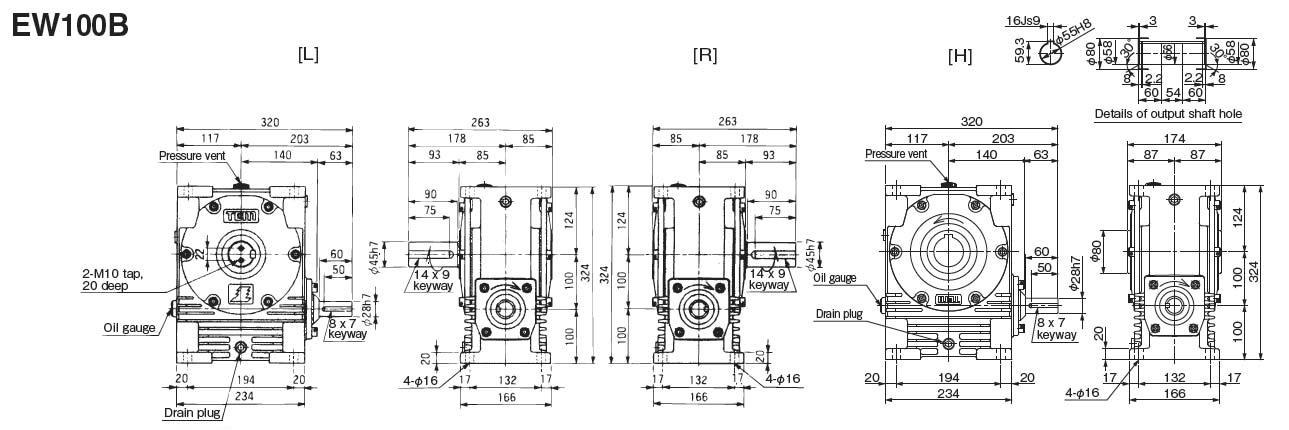

Worm Power Drives 　Major Specifications

Transmission Capacity Table

Reduction ratio	Input 1750　r/min			Input 1450　r/min			Input 1150　r/min			Input 950　r/min			Input 500　r/min			Input 100　r/min			Estimated Mass kg
	Input kW	Output torque		Input kW	Output torque		Input kW	Output torque		Input kW	Output torque		Input kW	Output torque		Input kW	Output torque
		N･m	{kgf･m}		N･m	{kgf･m}		N･m	{kgf･m}		N･m	{kgf･m}		N･m	{kgf･m}		N･m	{kgf･m}
10	10.81	552	56.3	9.83	602	61.4	9.10	696	71.1	8.14	748	76.3	5.29	899	91.8	1.14	899	91.8	41

・If the unit is to be run continuously between 1750 and 950 r/min for more than two hours, you must consider the thermal rating. Refer to the thermal rating factor on the technical data.

Hollow output 　Allowable Radial Load

Input speed
1750　r/min		1450　r/min		1150　r/min		950　r/min		500　r/min		100　r/min
N	{kgf}	N	{kgf}	N	{kgf}	N	{kgf}	N	{kgf}	N	{kgf}
4483	457	4705	480	4879	498	5217	532	6477	661	9369	956

Hollow output 　Allowable Axial Load

Input speed
1750　r/min		1450　r/min		1150　r/min		950　r/min		500　r/min		100　r/min
N	{kgf}	N	{kgf}	N	{kgf}	N	{kgf}	N	{kgf}	N	{kgf}
6009	613	6410	654	6682	682	7352	750	9965	1017	15572	1589

Standard package

Reducer	Lubrication System	Oil bath (shipped filled)
		Daphne Alpha Oil TE260
	Keyway	New JIS standard, normal grade 　JIS B1301-1976（Key is supplied with solid shaft models. ）
	Paint specifications	Munsell 2.5G6/3 (green)
		Primer: lacquer primer 　　Finish coat: lacquer-based paint
	Rust Proofing Specifications	Rust proof effective for 6 months when stored indoors (after shipping).
		Outside: rust-proofing grease 　　　Inside: sealed after lubrication oil is filled
Ambient conditions	Installation	Indoors
	Ambient Temperature	-10℃～50℃
	Ambient Humidity	95% or less (no condensation)
	Altitude	No more than 1,000 m above sea level
	Atmosphere	Area must be free of corrosive and explosive gases, steam, condensation, and have little or no dust.
Installation direction		Horizontal or vertical
