Stainless Steel Top Chain TS Major Specifications
TS
Features
- ・Stainless steel conveyor chain with top plates attached to ANSI double pitch chain. Standard sprockets for ANSI double pitch chains can be used.
- ・Base chain is available in NP (nickel-plated), Lambda, or SS (all stainless steel) specifi cations.
- ・Available in a wide variety of special fi nishes to suit various applications and work environments. Includes hard chromium plated, buffed top plates, and heat-treated top plates for improved wear resistance.

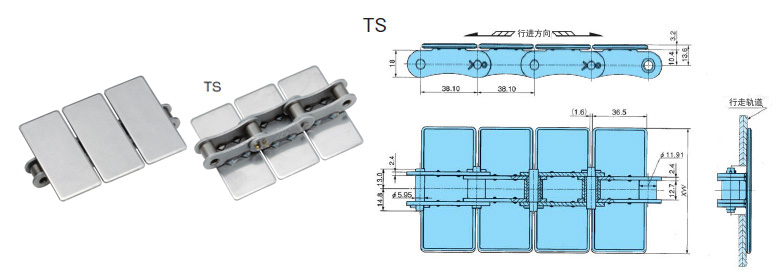

PDF Outline Drawing
Contact us for details.
CAD data in DXF format
See the table below
(Click here for a list of all DXF files )
Catalogs ・Instruction Manuals
Major Specifications
Chain Pitch mm |
Package | Model | Top plate width XW mm |
Max. allowable load kN |
Estimated Mass kg/m |
Operating Temperature Range ゚C |

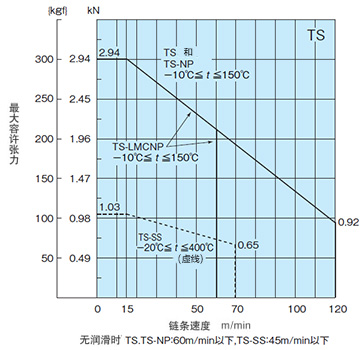

Allowable load graphs |
Number of links per one unit of chain |
DXF data |
---|---|---|---|---|---|---|---|---|---|
38.10 | Standard Series | TS550 | 55.0 | 2.94 | 2.5 | -10~150 | See allowable load graphs |
80 | DXF |
TS635 | 63.5 | 2.7 | DXF | ||||||
TS762 | 76.2 | 3.0 | DXF | ||||||
TS826 | 82.6 | 3.2 | DXF | ||||||
TS950 | 95.0 | 3.5 | DXF | ||||||
TS1016 | 101.6 | 3.7 | DXF | ||||||
TS1100 | 110.0 | 3.9 | DXF | ||||||
TS1143 | 114.3 | 4.0 | DXF | ||||||
TS1270 | 127.0 | 4.3 | DXF | ||||||
TS1524 | 152.4 | 4.9 | DXF | ||||||
TS1905 | 190.5 | 5.8 | DXF | ||||||
38.10 | NP Series | TS550-NP | 55.0 | 2.94 | 2.5 | -10~150 | See allowable load graphs |
80 | DXF |
TS635-NP | 63.5 | 2.7 | DXF | ||||||
TS762-NP | 76.2 | 3.0 | DXF | ||||||
TS826-NP | 82.6 | 3.2 | DXF | ||||||
TS950-NP | 95.0 | 3.5 | DXF | ||||||
TS1016-NP | 101.6 | 3.7 | DXF | ||||||
TS1100-NP | 110.0 | 3.9 | DXF | ||||||
TS1143-NP | 114.3 | 4.0 | DXF | ||||||
TS1270-NP | 127.0 | 4.3 | DXF | ||||||
TS1524-NP | 152.4 | 4.9 | DXF | ||||||
TS1905-NP | 190.5 | 5.8 | DXF | ||||||
38.10 | Lambda Series | TS550-LMCNP | 55.0 | 2.94 | 2.5 | -10~150 | See allowable load graphs |
80 | DXF |
TS635-LMCNP | 63.5 | 2.7 | DXF | ||||||
TS762-LMCNP | 76.2 | 3.0 | DXF | ||||||
TS826-LMCNP | 82.6 | 3.2 | DXF | ||||||
TS950-LMCNP | 95.0 | 3.5 | DXF | ||||||
TS1016-LMCNP | 101.6 | 3.7 | DXF | ||||||
TS1100-LMCNP | 110.0 | 3.9 | DXF | ||||||
TS1143-LMCNP | 114.3 | 4.0 | DXF | ||||||
TS1270-LMCNP | 127.0 | 4.3 | DXF | ||||||
TS1524-LMCNP | 152.4 | 4.9 | DXF | ||||||
TS1905-LMCNP | 190.5 | 5.8 | DXF | ||||||
38.10 | SS Series | TS550-SS | 55.0 | 1.03 | 2.5 | -20~400 | See allowable load graphs |
80 | DXF |
TS635-SS | 63.5 | 2.7 | DXF | ||||||
TS762-SS | 76.2 | 3.0 | DXF | ||||||
TS826-SS | 82.6 | 3.2 | DXF | ||||||
TS950-SS | 95.0 | 3.5 | DXF | ||||||
TS1016-SS | 101.6 | 3.7 | DXF | ||||||
TS1100-SS | 110.0 | 3.9 | DXF | ||||||
TS1143-SS | 114.3 | 4.0 | DXF | ||||||
TS1270-SS | 127.0 | 4.3 | DXF | ||||||
TS1524-SS | 152.4 | 4.9 | DXF | ||||||
TS1905-SS | 190.5 | 5.8 | DXF |
Chain Pitch kg/m |
Package | Model | Top plate width XW mm |
Max. allowable load kN |
Estimated Mass kg/m |
Operating Temperature Range ゚C |
Allowable load graphs |
Number of links per one unit of chain |
DXF data |
---|---|---|---|---|---|---|---|---|---|
38.10 | CTP type | TS635-CTP | 63.5 | - | - | - | - | - | - |
TS762-CTP | 76.2 |
Notes
1.This is a made to order item.
2.Back flex radius is larger than standard TS chain. Contact a Tsubaki representative when using TS-CTP chain to replace Tsubaki standard TS chain.
Applicable sprockets
※Click the model No. for detailed information. Click to enlarge.
|
|
Applicable accessories
※Click the model No. for detailed information. Click to enlarge.
Disconnecting and Connecting Tools For TS Top Chains
|
|
Applicable plastic rail
※Click the model No. for detailed information. Click to enlarge.
|
The plastic rail has no heat resistance or chemical resistance. |
