Plastic Series 3D TKRB Series
- Three-dimensional cable carrier capable of handling large tension.
- ・Built-in wire provides high tensile strength.
- ・Open structure makes it easy to handle.
- ・A wide variety of accessories are available.
- ・Length can be adjusted by cutting and connecting. Please refer to the instruction manual for details.
Construction
Wire for high tensile force
Open type structure
- Insert cable by pressing it in
- Easy maintenance work for stored cables
Protective covers or heat resistant shields according to usage environment conditions are also available.
Use special plastic for long service life
Quick release bracket can be easily installed to the link.

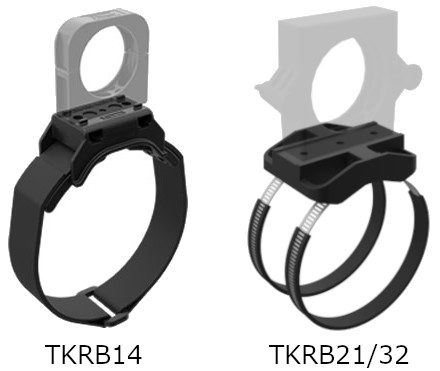

The surface fastener allows a bracket to be attached to a curved surface.
※TKRB14H10 only
Accessories ※Some items may not be available depending on size.
 |
 |
 |
 |
| Protector | Heat shield / protective cover | Tension piece | Clamp |
 |
 |
 |
 |
| Coil spring | Strain relief LFR (For LineFix mounting ) |
PBU(Pull Back Unit) | Guide bracket |
 |
 |
 |
|

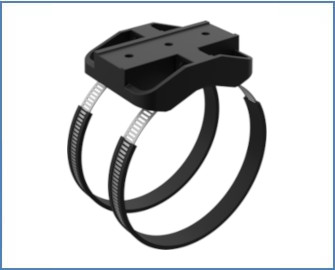

| Bracket | Turntable | Bracket Holder |
Features
1．Can be bent in three dimensions
Extends life of cables that bend in three dimensions, such as multi-axis robots, and avoids risk of premature disconnection.
2．Highly durable
Engineering plastic links are connected by ball-joint structure at both ends, with a wire built into the center of link to ensure strength and flexibility.
3．Easy to insert cables/hoses
All sizes are open type. Slit structure or snap openable mechanism allows easy insertion of cables/hoses.
4．Wide range of accessories
Wide range of accessories are available for various operating environments and wiring.
5．Line-up of divider module (TKRB50H48)
Large size TKRB50H has a lineup of divider modules to allow more cables/hoses to be stored independently.
6．Attachment to a curved surfaces using surface fastener type
The bracket can also be attached to curved robot arms such as collaborative robots.
Catalogs ・Instruction Manuals
List of Models
| TKRB14H10～TKRB40H31 | TKRB50H48 |
 |
 |
※Click the name for more information.
| Series | Size | Outer diameter of applicable cable/hose mm |
Bending radius mm |
Allowable rotation angle (per 1 m) ° |
Da mm |
hi mm |
t mm |
|---|---|---|---|---|---|---|---|
| TKRB Series | TKRB14H10 | 2～7 | 40[53] | ±670 | 31 | 10 | 14.5 |
| TKRB21H10 | 2～8 | 70[75] | ±450 | 40 | 10 | 21.5 | |
| TKRB32H14 | 2～11 | 90[105] | ±300 | 56 | 14 | 32 | |
| TKRB40H22 | 3～18 | 125[140] | ±215 | 75 | 22 | 40 | |
| TKRB40H24 | 3～20 | 130[170] | ±215 | 85 | 24 | 40 | |
| TKRB40H31 | 3～27 | 130[175] | ±215 | 100 | 31 | 40 | |
| TKRB50H48 | ～42 | 125[225] | ±200 | 140 | 48 | 50 |
